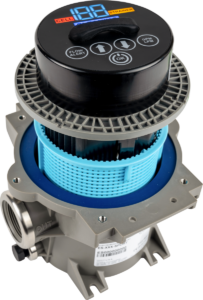

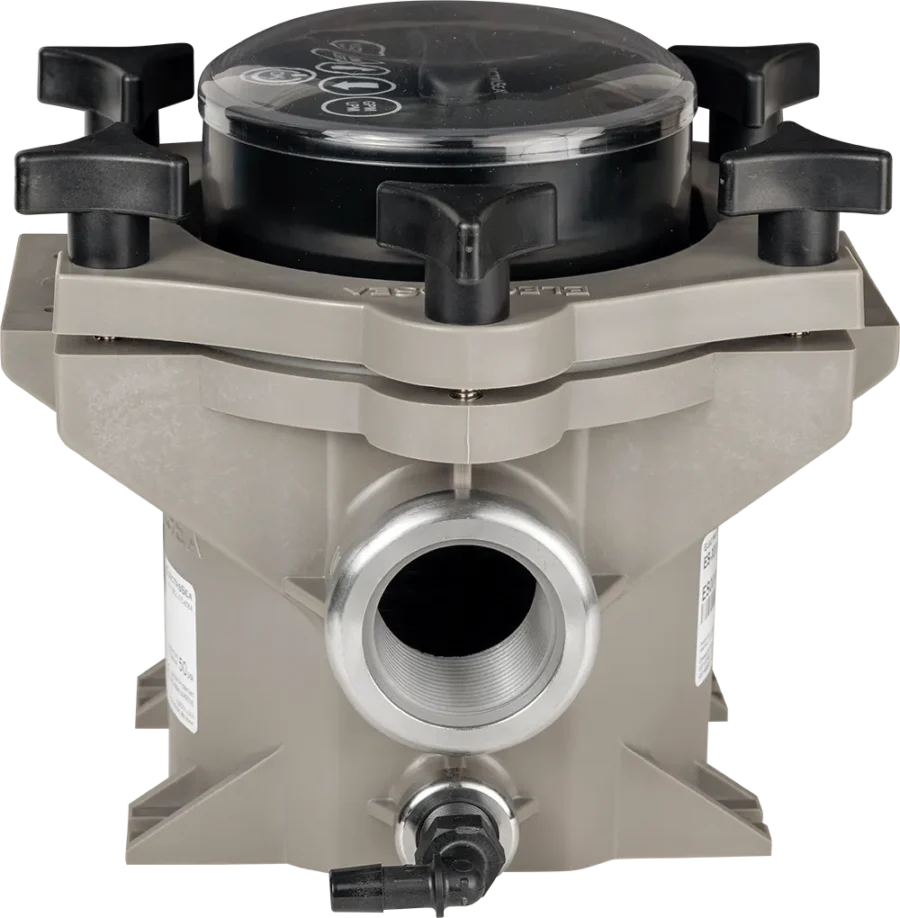

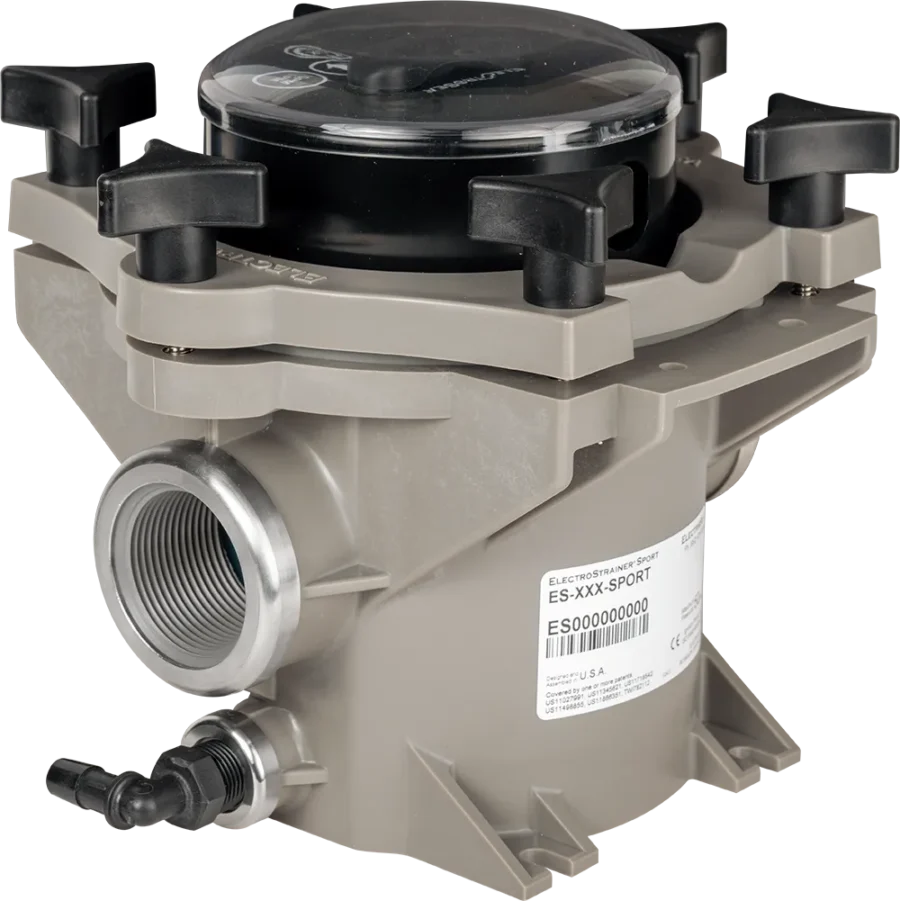

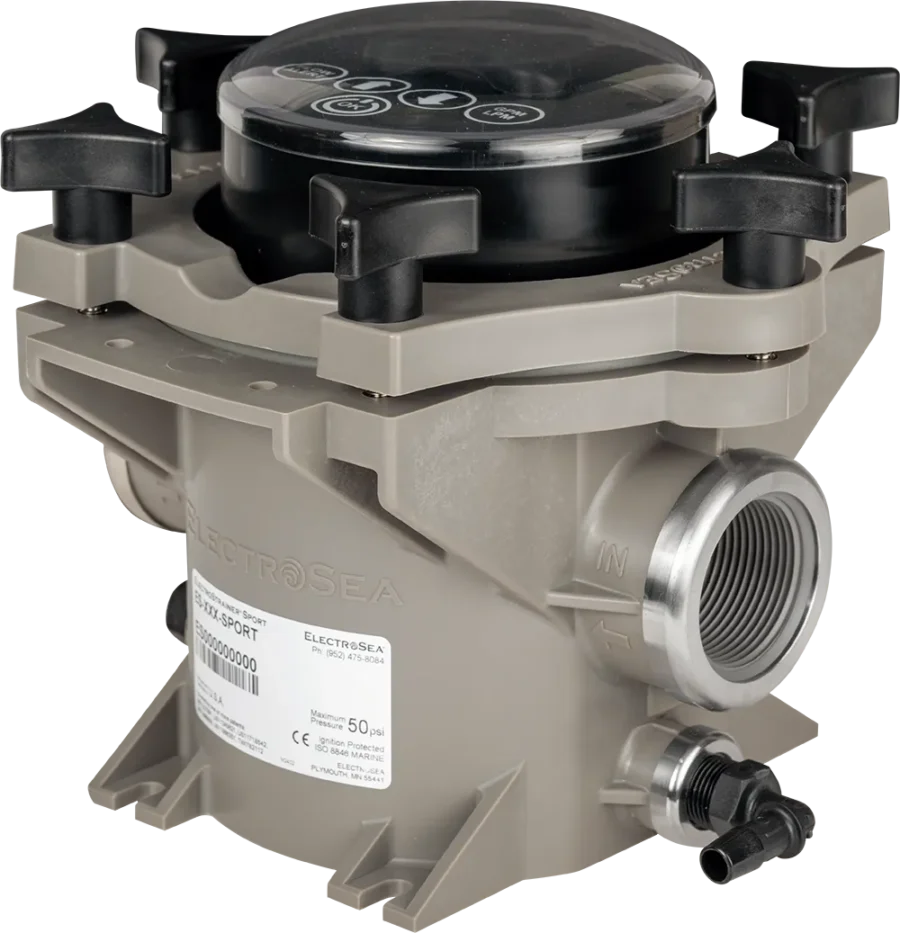

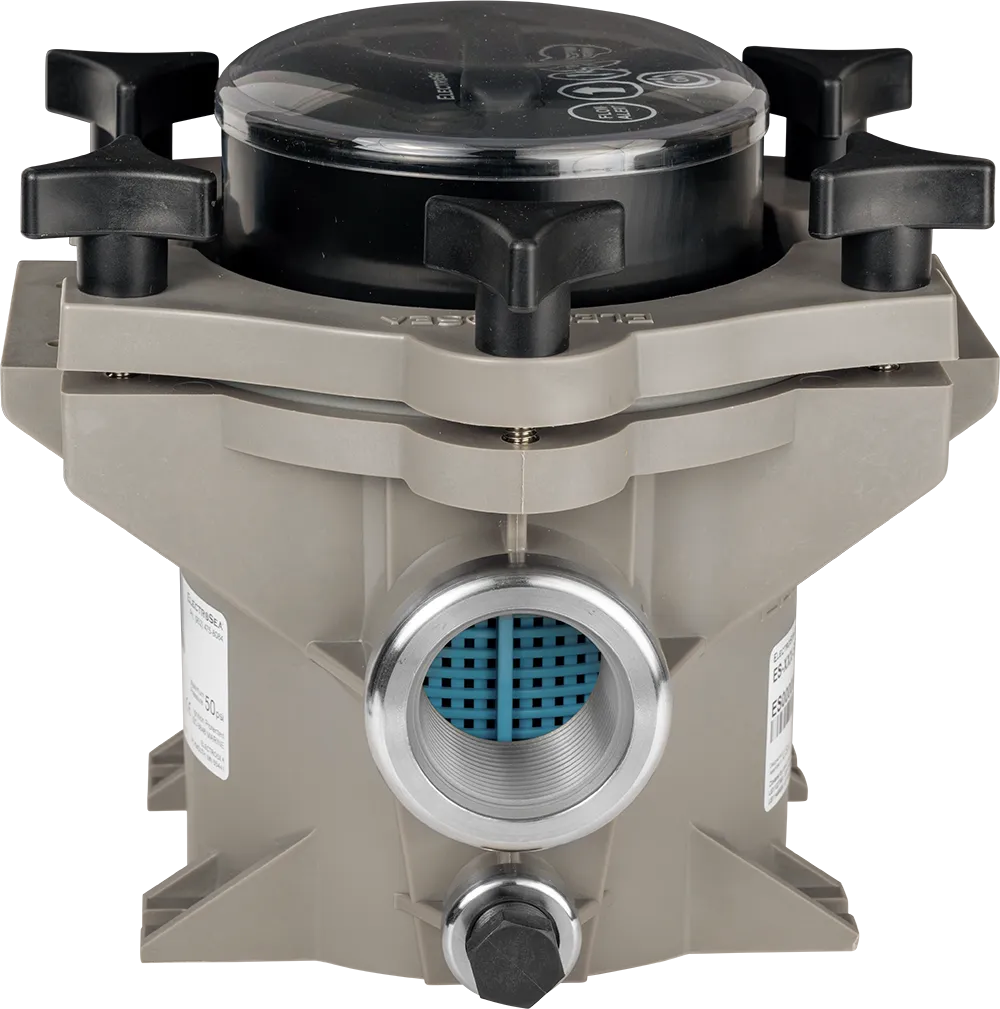

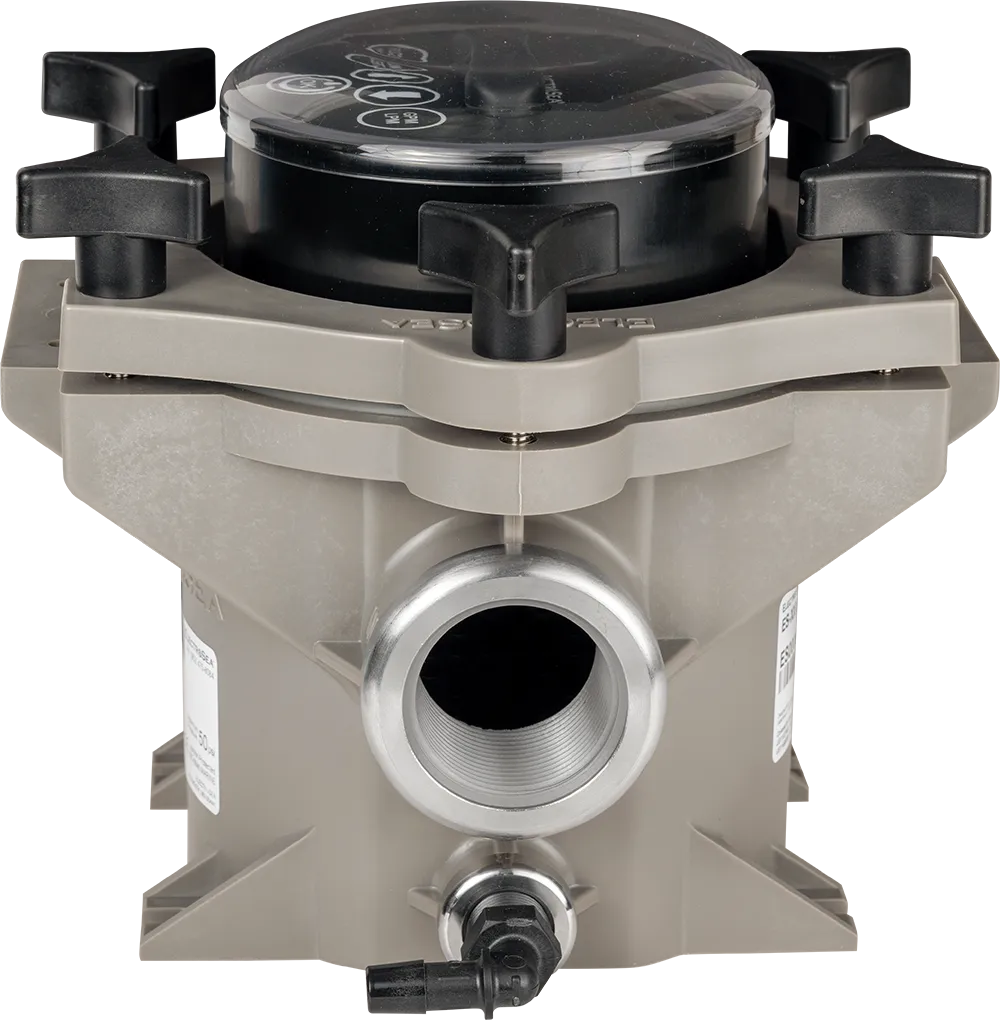

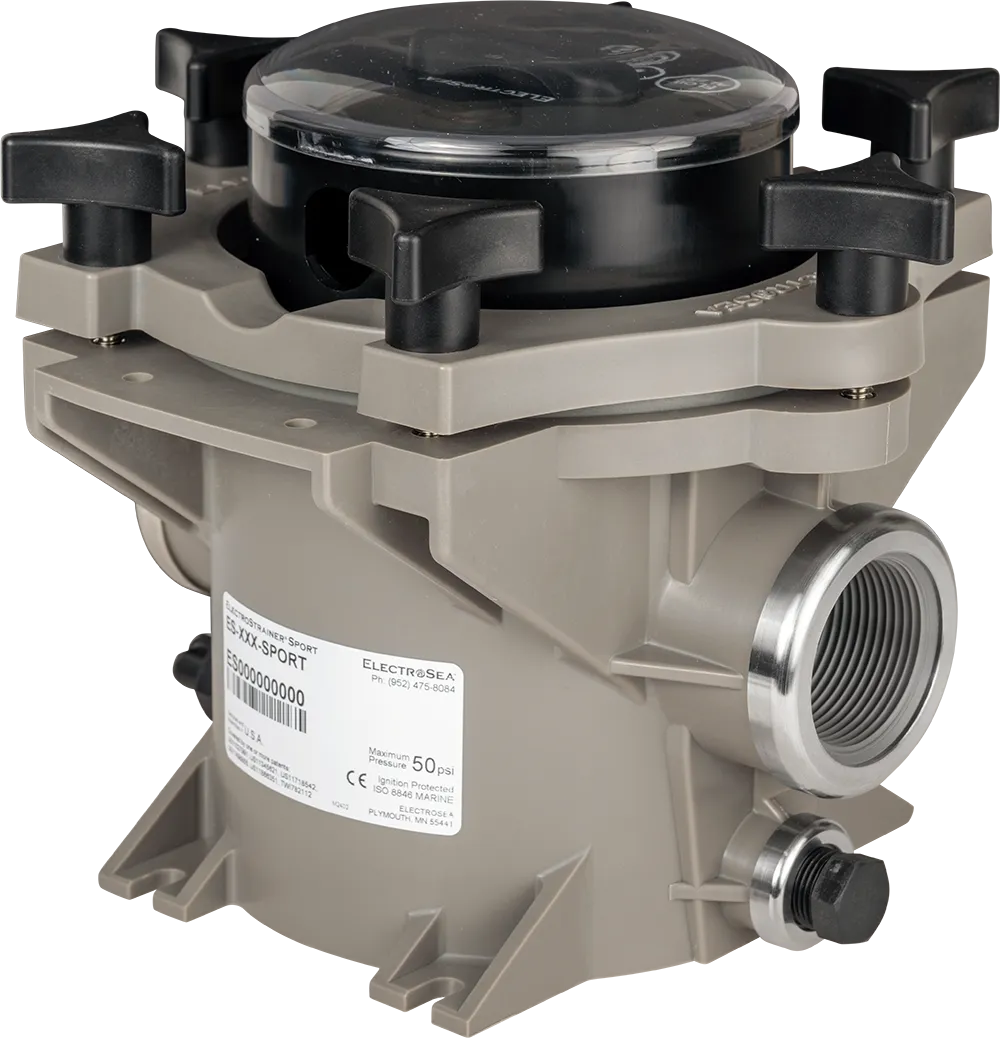

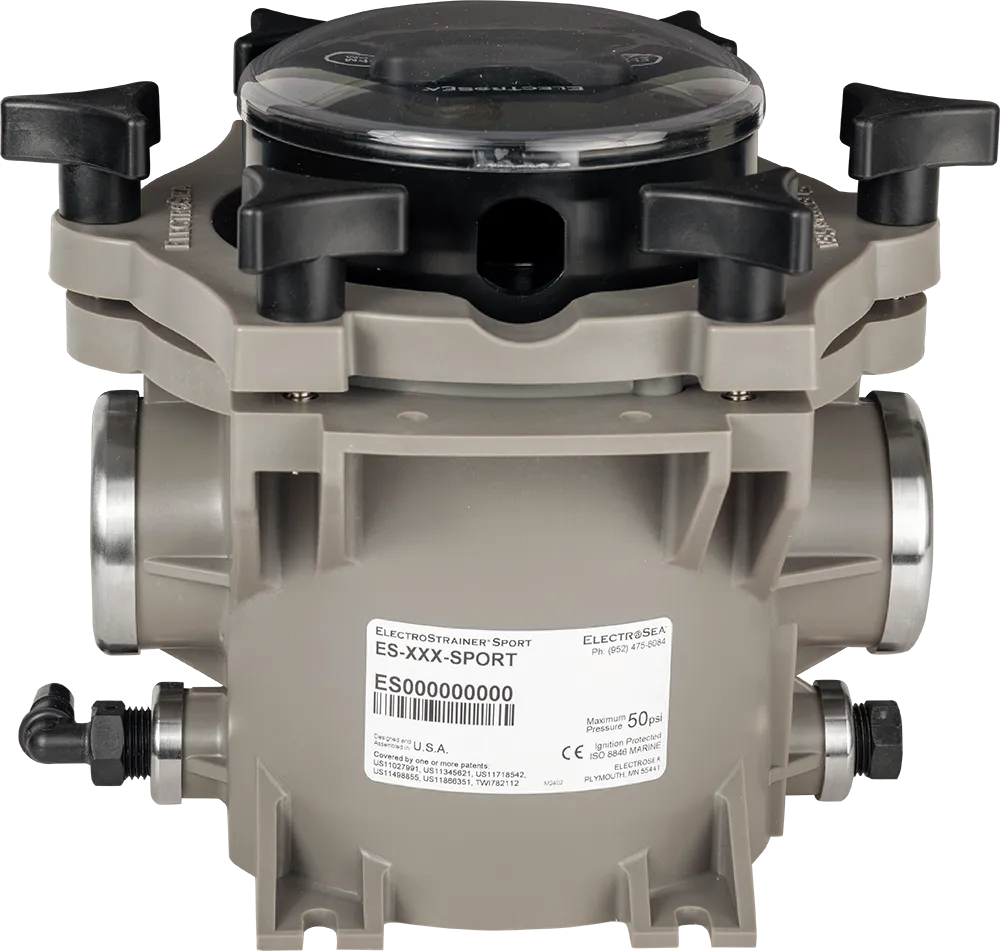

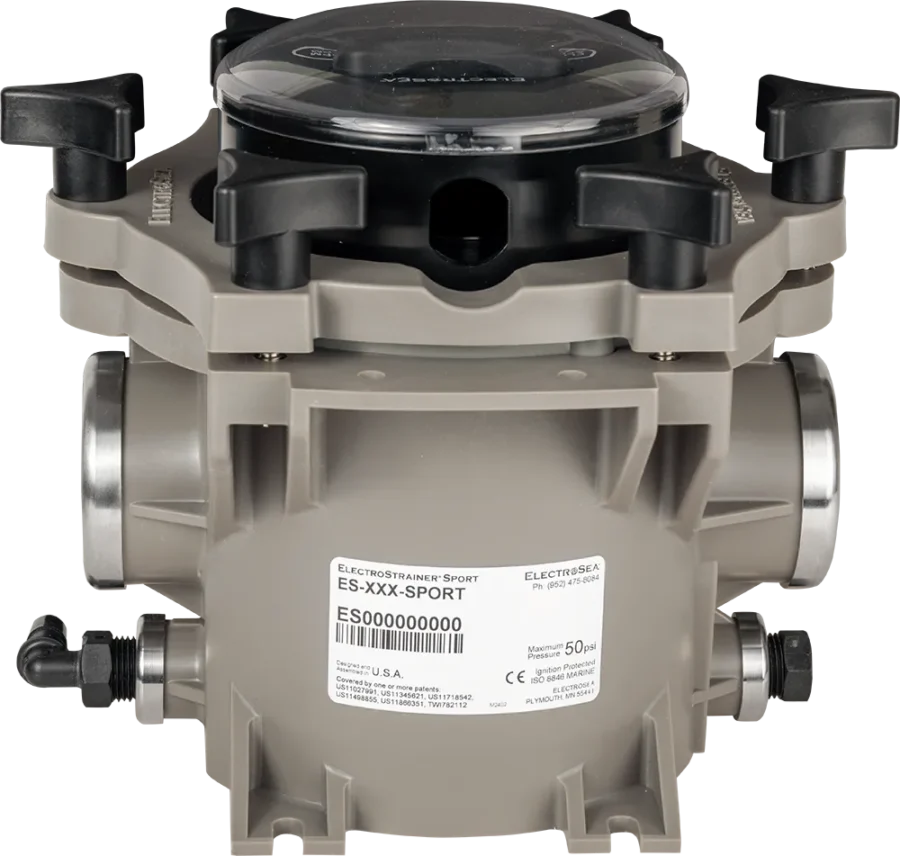

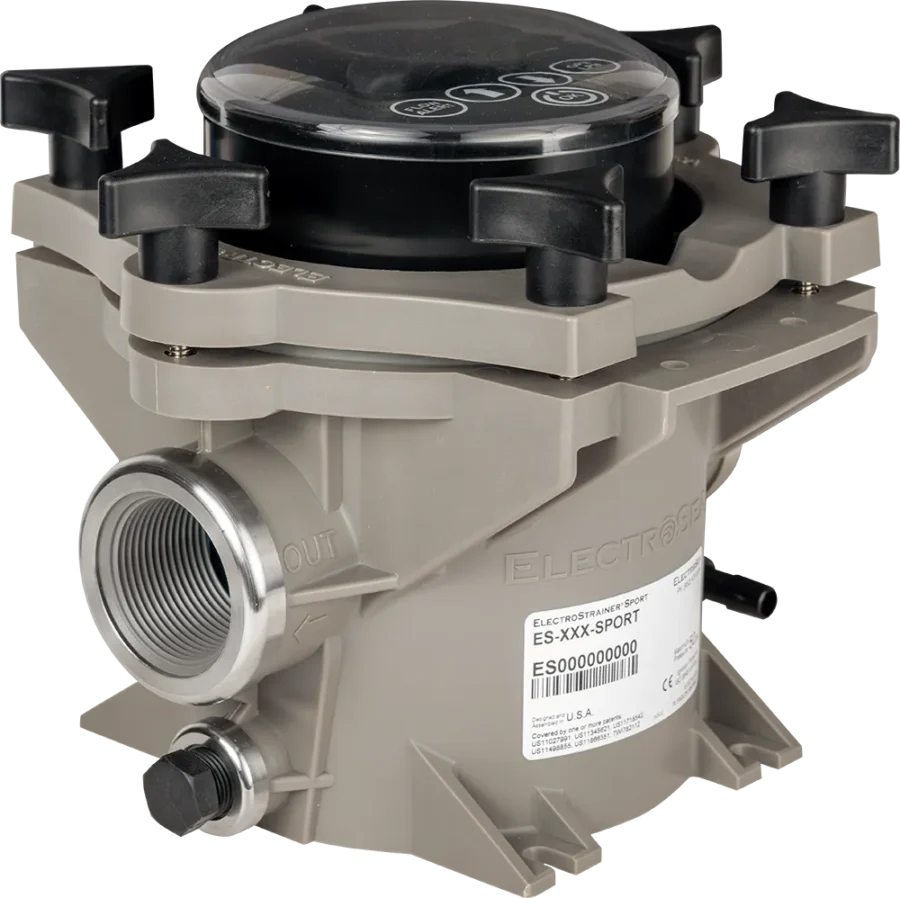

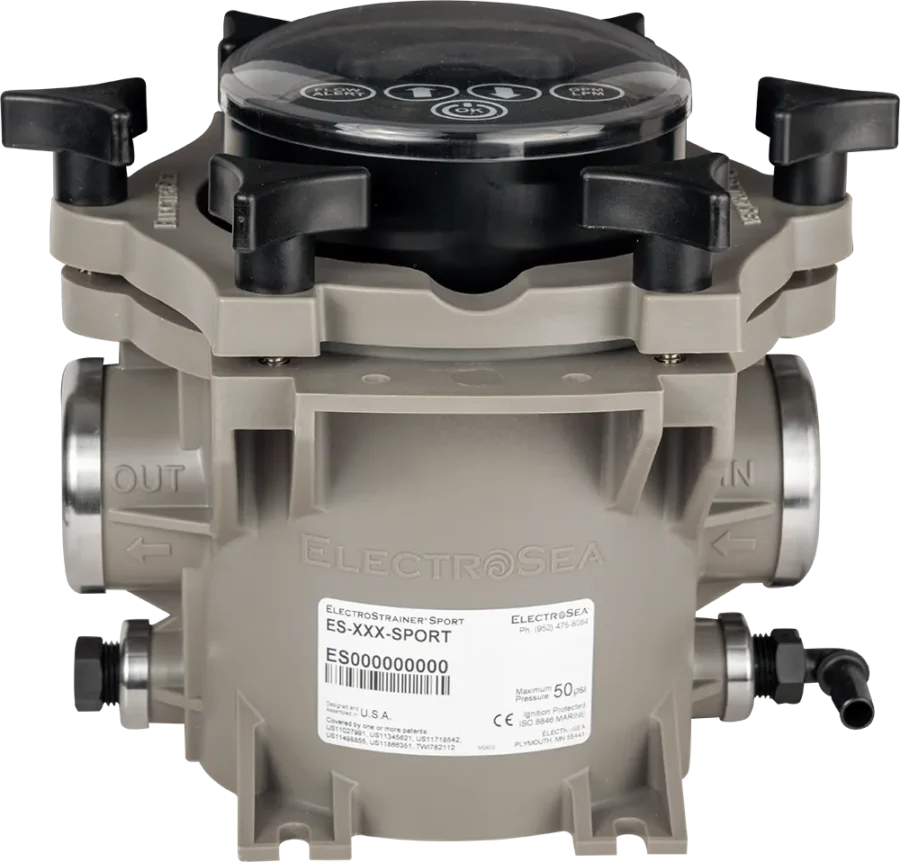

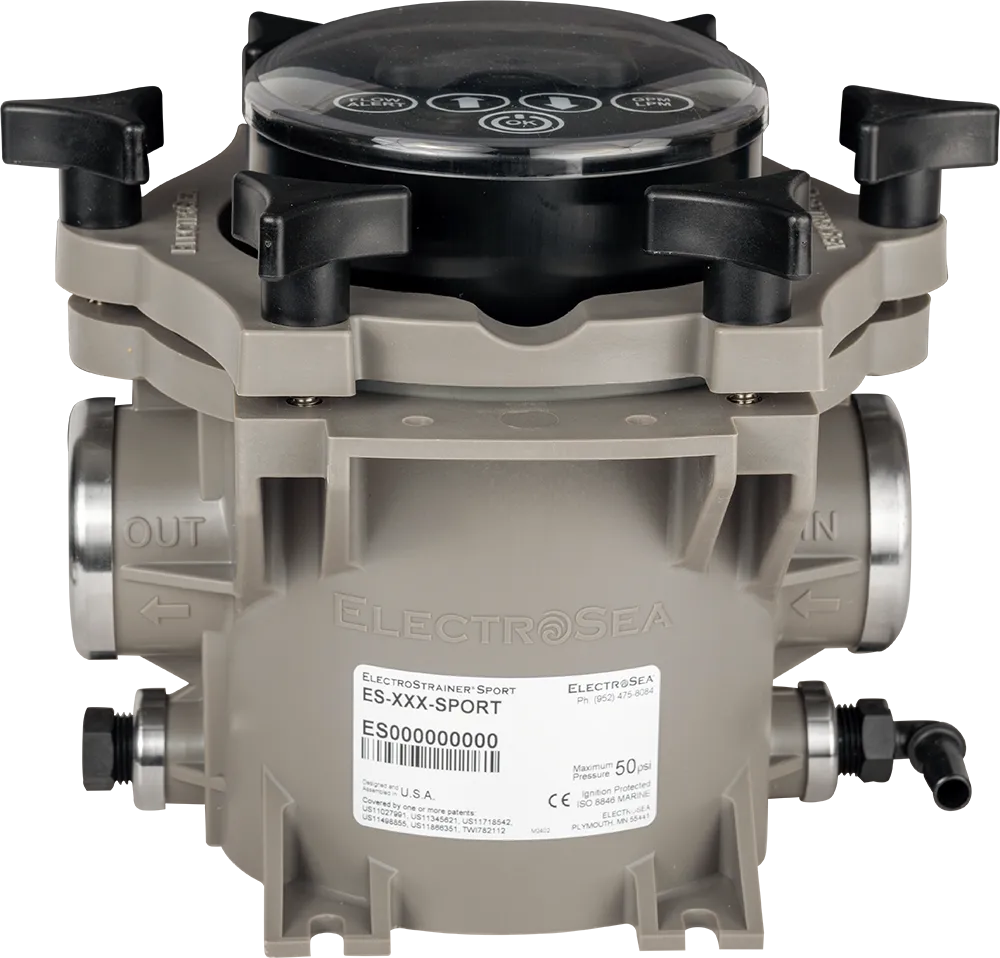

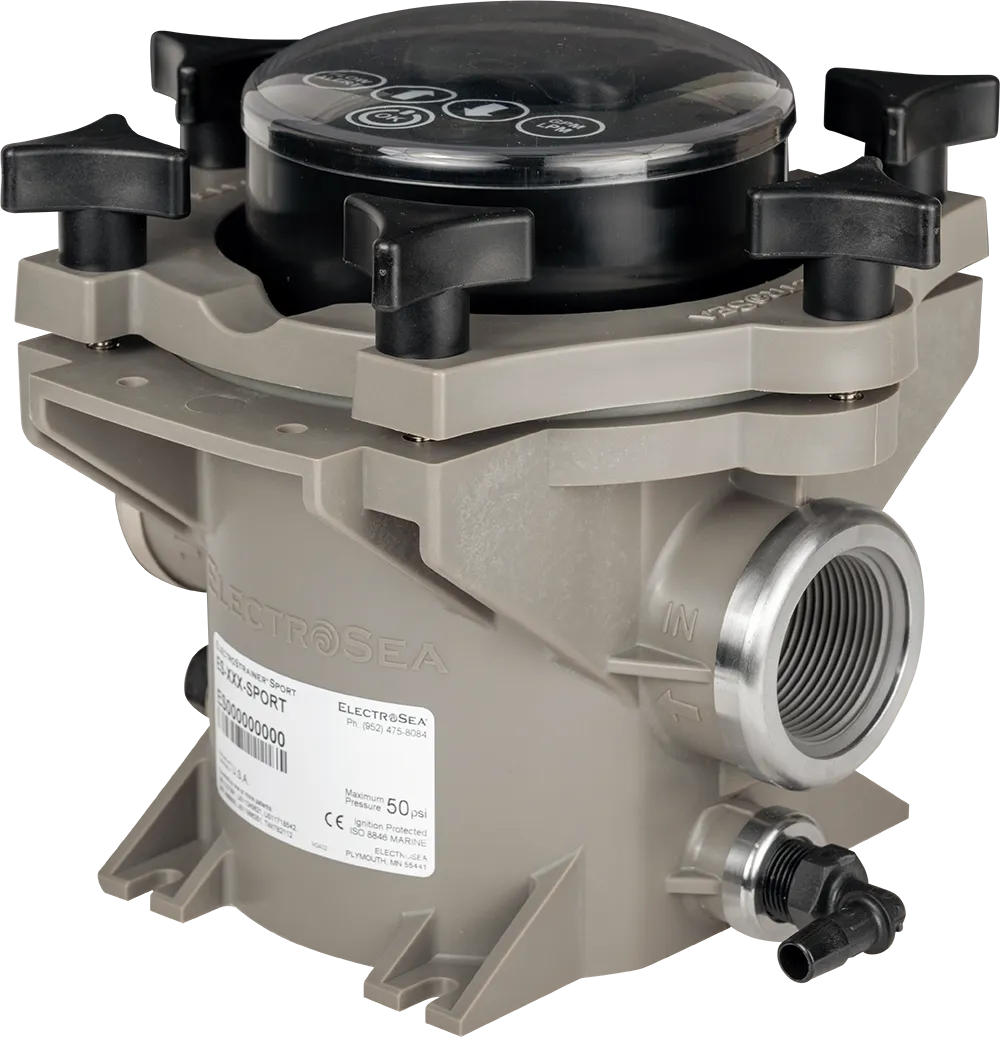

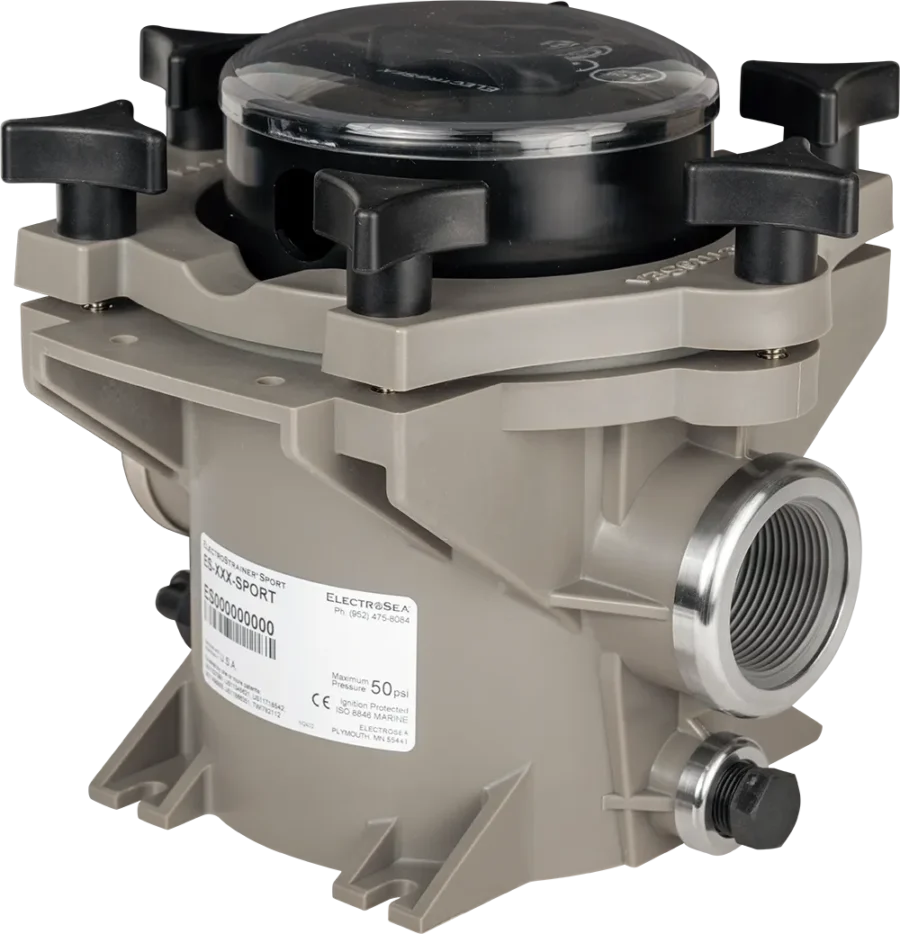

ElectroStrainer Sport ES-125-SPORT

$4,995

MSRP

1.25″ NPT (DN32)
Optimal Flow: 6-17 gpm
Min/Max Flow: 4-30 gpm

SKU 200071-009 Category ElectroStrainer Sport

Product Description

Designed for DIY self-installation, ElectroStrainer Sport ES-125-SPORT is a revolutionary, smart all-in-one marine biofouling prevention and sea strainer system. Suited for vessels with 1.25″ NPT (DN32) inlet/outlet accommodation for the sea strainer, the ES-125-SPORT replaces your existing sea strainer and combines three components: an innovative biofouling prevention device, an integrated hydrodynamic sea strainer, an advanced, and a smart flow-monitoring system.

Product Information

Features

All-in-One Design
ElectroStrainer Sport is an all-in-one, smart biofouling-prevention system with integrated sea strainer.

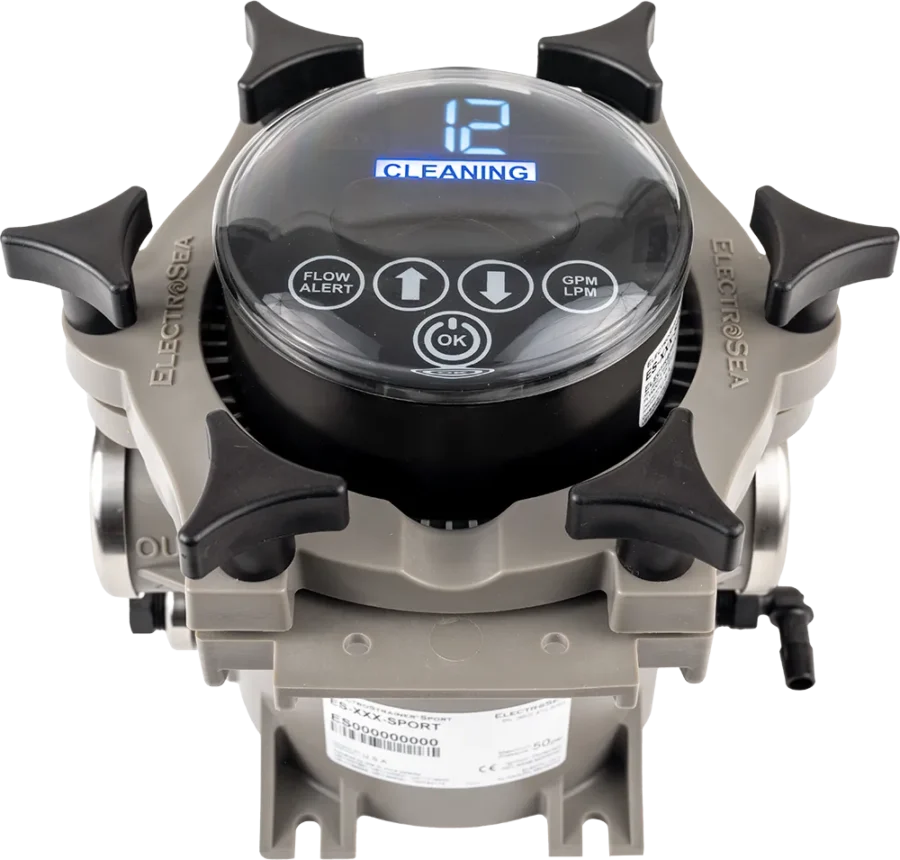

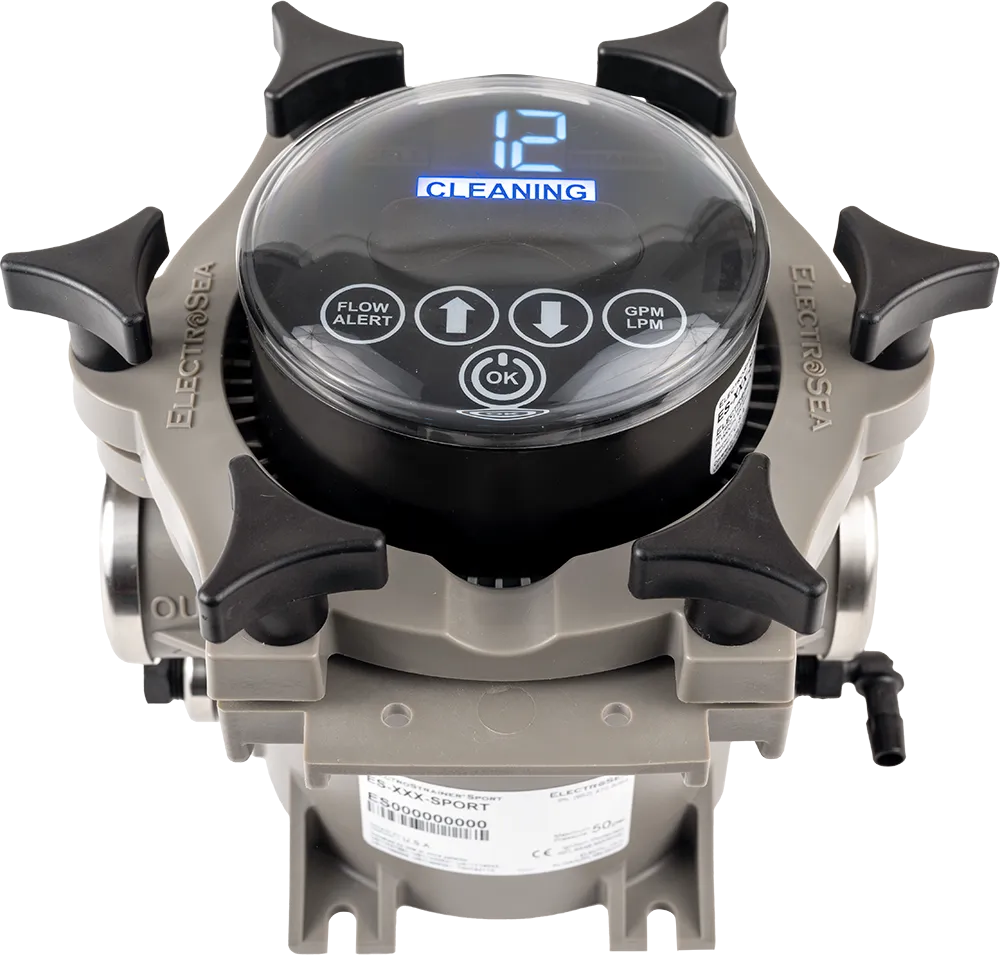

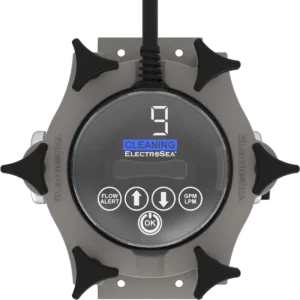

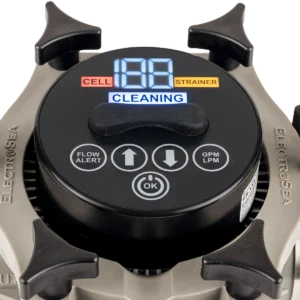

Compact Control Head
The Control Head features a compact design, a water-resistant keypad, and a bright, easy-to-read LED screen and intuitive controls.
ClearVis® Flow Sensor
The ultrasonic ClearVis® Flow Sensor measures the amount of seawater moving through the sensor in real time.
Smart Flow Monitoring
The flow rate is monitored in real time using the ultrasonic ClearVis® Flow Sensor so you know how much protected seawater is flowing through your system at all times. Gone are the days of peering through a dirty site glass or guessing your flow rate.
Smart Strainer Flow Alert™
ElectroStrainer Sport automatically alerts you if its strainer basket needs attention with its Smart Strainer Flow Alert™ feature.

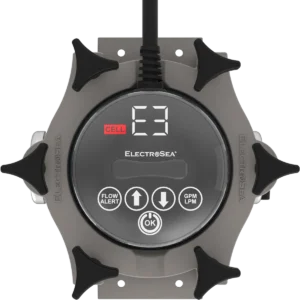

Cell Indicator
The CELL indicator will illuminate or flash in various conditions to indicate low salinity or when the Cell has reached the end of its useful life.
Optional Remote Display (ordered separately)
View real-time flow information on the optional Remote Display (ordered separately), which can be located in the salon, cockpit, or other interior location.

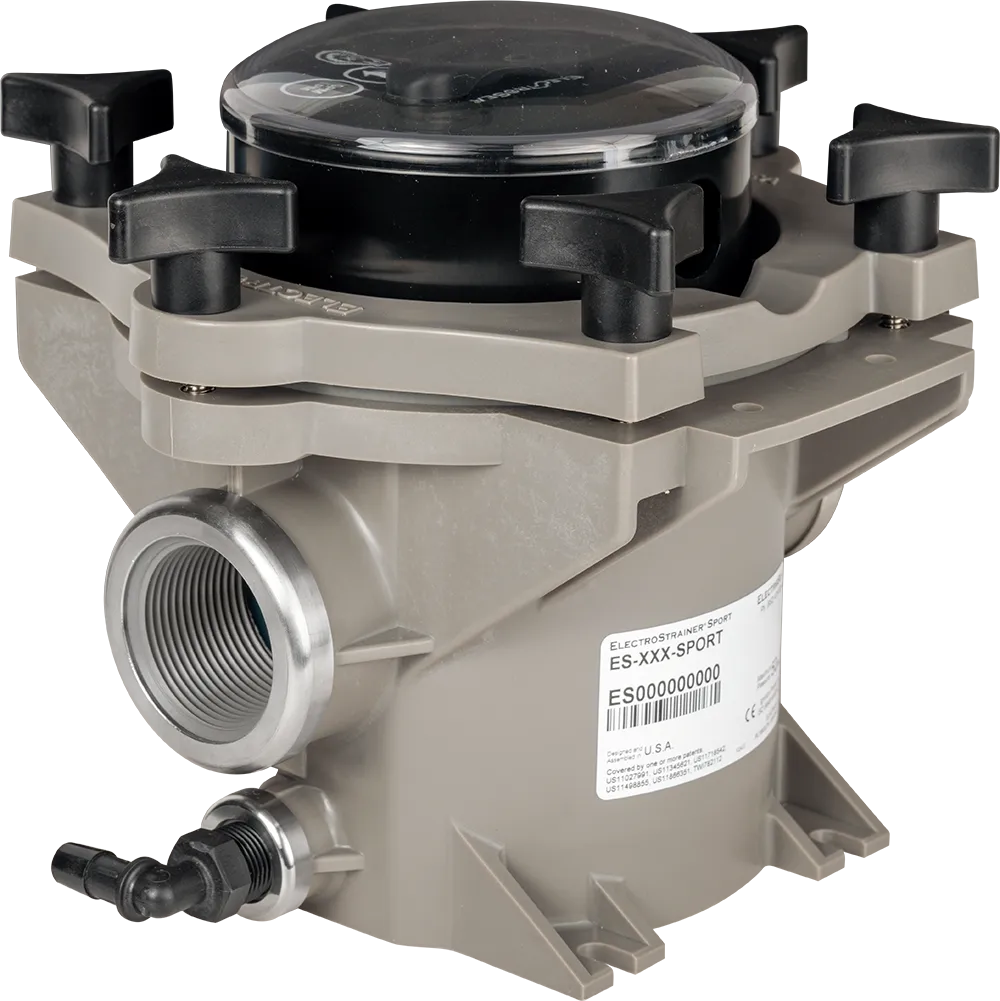

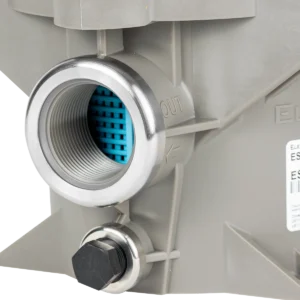

Composite Canister
The Canister is made of an engineered lightweight, advanced glass fiber-reinforced composite with titanium-threaded inserts and stainless-steel reinforced rings designed for strength and durability.
Flow Rate in gpm or lpm
Monitor flow rate in gallons per minute (gpm) or liters per minute (lpm).
LED Status Lights
Bright, color-coded LED lights provide operating status at a glance and are easy to see even from across your engine room.
Water-Resistant Keypad
The water-resistant keypad provides easy-to-see, intuitive operation.
Chlorinated Return Line
A Chlorinated Return Line prevents growth at the inlet side of the strainer basket.

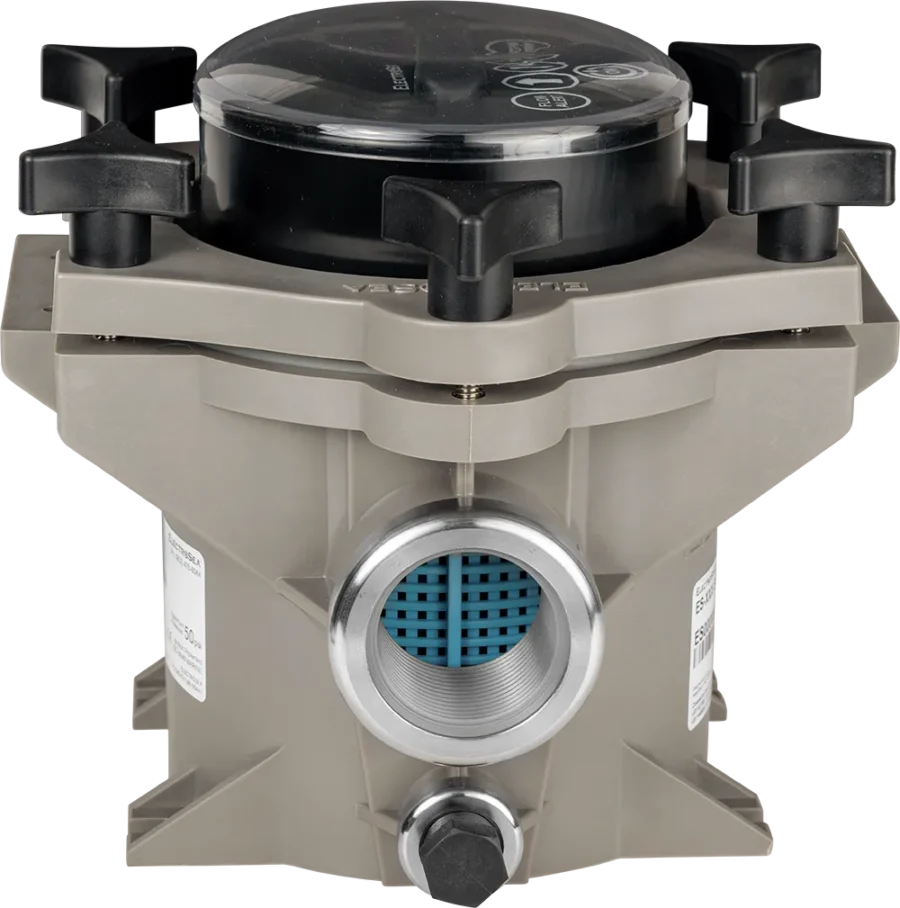

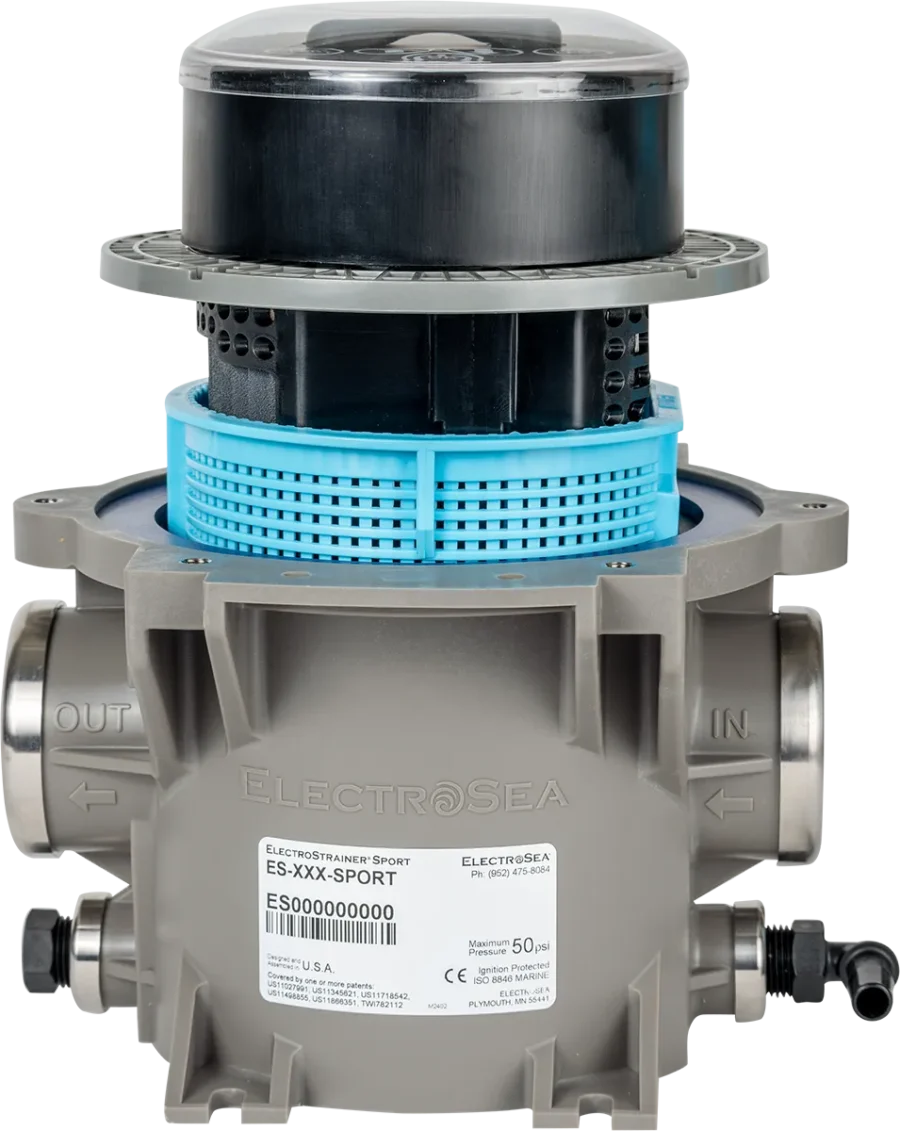

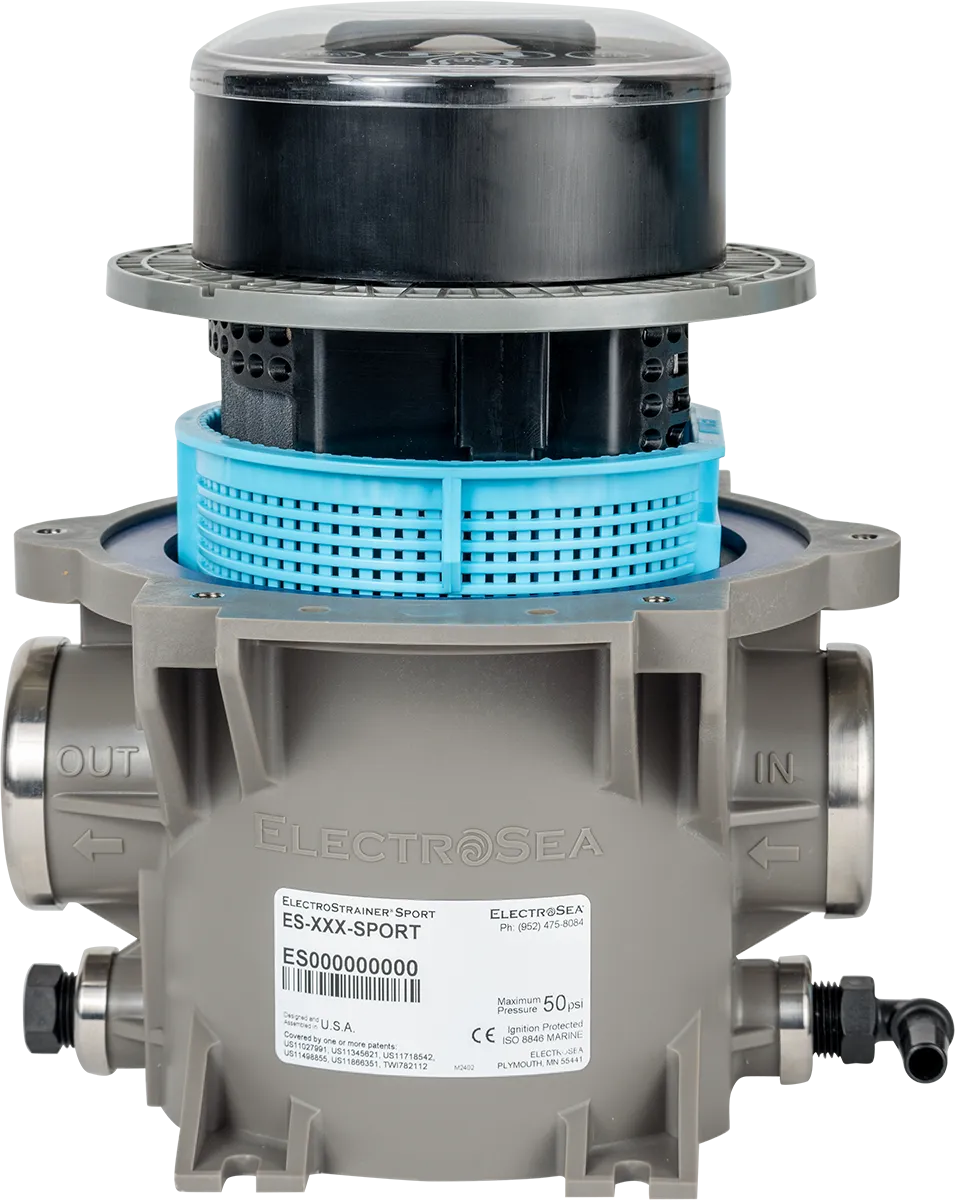

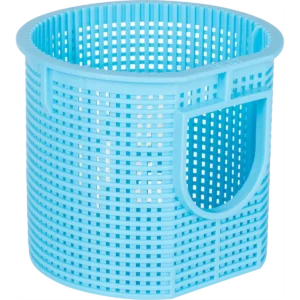

Hydrodynamic Strainer Basket
The integrated sea strainer basket is hydrodynamically optimized to diffuse chlorinated seawater throughout the entire basket. The strainer basket has a large surface area with minimal pressure drop.

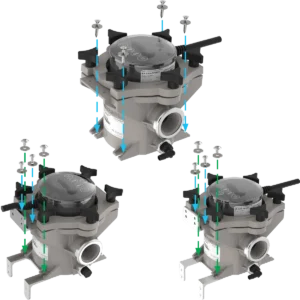

Mounting Options
Multiple mounting configurations available to fit any vessel.

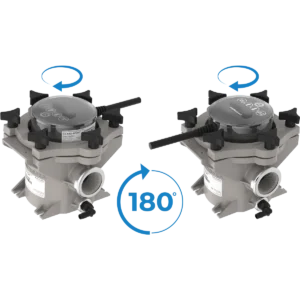

180° Control Head Rotation
The Control Head can be oriented on the Canister so it is facing the front or the back for easy viewing.

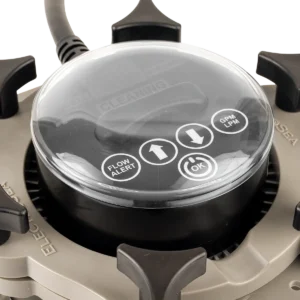

Clear Protective Cover
A clear Protective Cover keeps water and dirt off the Control Head, while allowing easy viewing of the LED screen and indicator lights.

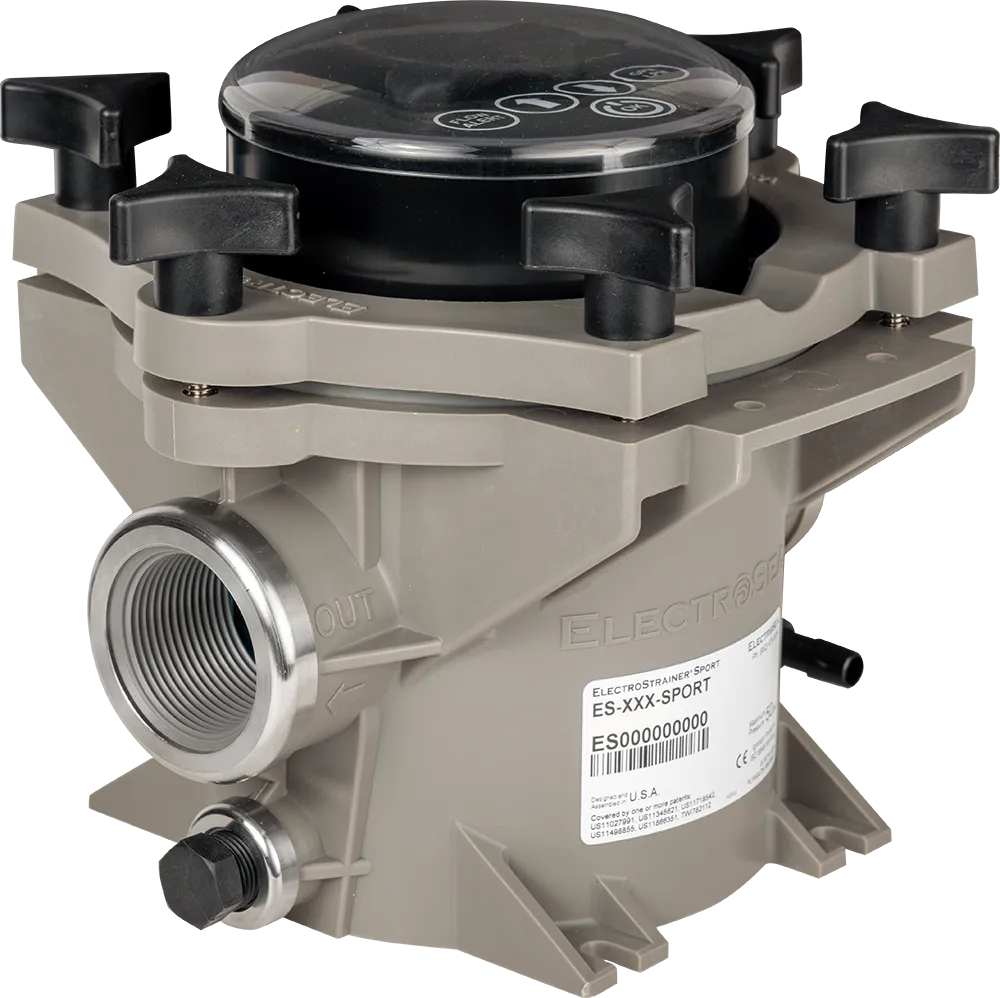

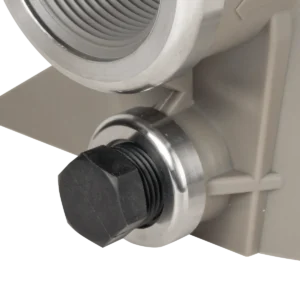

Drain Plug
A removable drain plug allows for draining (i.e., for winter storage) of the ElectroStrainer Sport Canister.
Water-Resistant Connectors
Every aspect of ElectroStrainer Sport, including the connectors, are designed to withstand the rigors of the marine environment. Triple-sealed connectors prevent water intrusion.
Easy Updates
Make quick and easy firmware updates using the built-in USB port.
1-Year Warranty
ElectroStrainer Sport is backed by ElectroSea’s 1-year parts warranty.

Specifications

Canister and Control Head Assembly

Dimensions (L x W x H)	8.83 x 8.12 x 7.37 inches 224.282 x 206.25 x 187.2 mm
Weight	5 lb 13 oz 2.64 kg
Power Source	12 or 24 VDC
Power Consumption	Max Power: 65 watts Typical Power: 25 watts
Cables Included	Power: 30 ft (9 m)
Optional Cables (ordered separately)	ClearVis Flow Sensor Extension Cable: 6 ft (1.8 m) Remote Display Communication Cable: 30 ft (9 m) Extended Remote Display Communication Cable: 100 ft (30 m) ClearVis Flow Sensor Extension: 6 ft (1.8 m)
Inlet/outlet	1.25 inch NPT (DN32)
Flow Rate	Optimal Flow: 6-17 gpm (23-64 lpm) Min/Max Flow: 4-30 gpm (15-114 lpm)
Maximum Operating Pressure	30 psi
Replacement Cell Part Number	300074-044

Optional Remote Display (ordered separately)

Dimensions Including Mounting Bracket (L x W x H)

5.5 X 3.96 X 1.51 inches
139.70 x 100.58 x 38.35 mm

Manuals & Documentation

ElectroStrainer Sport Brochure

ElectroStrainer Sport Installation and Operation Manual

Note: Product images are for illustration purposes only and may not be an exact representation of the product.
ElectroSea reserves the right to change product images and specifications at any time without notice.
