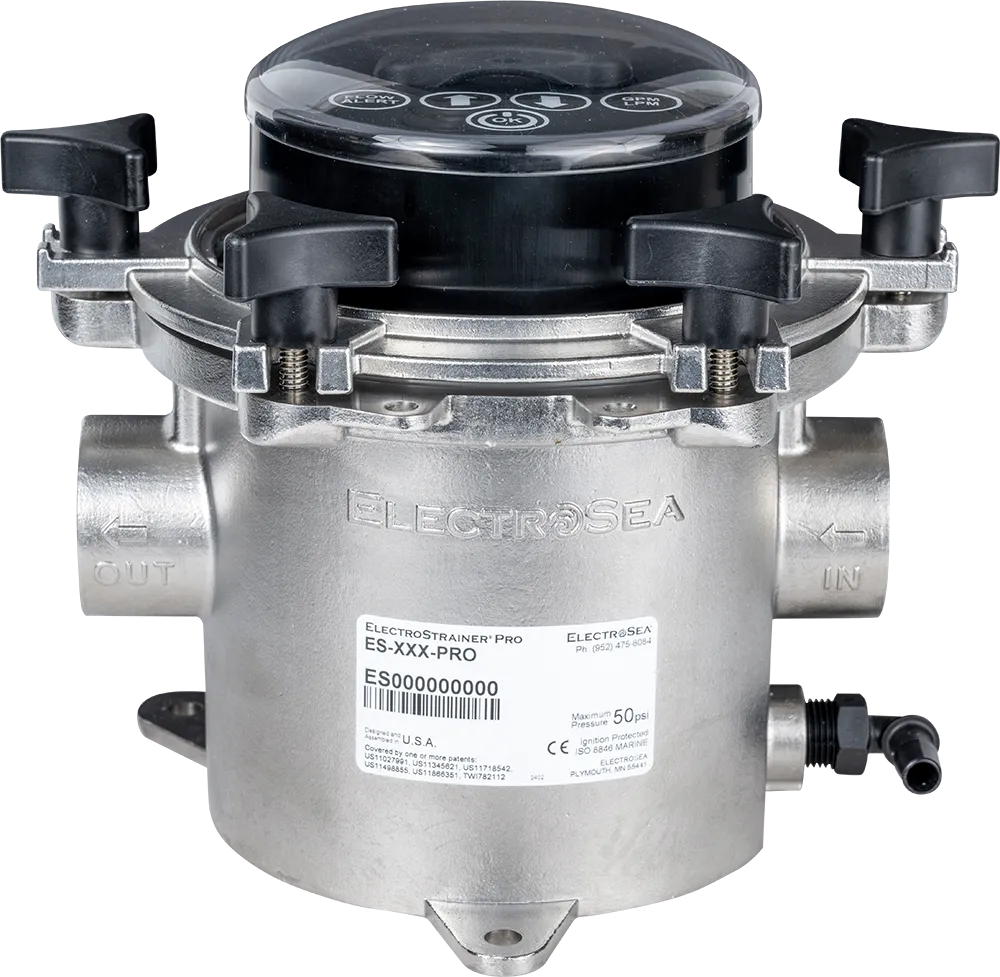

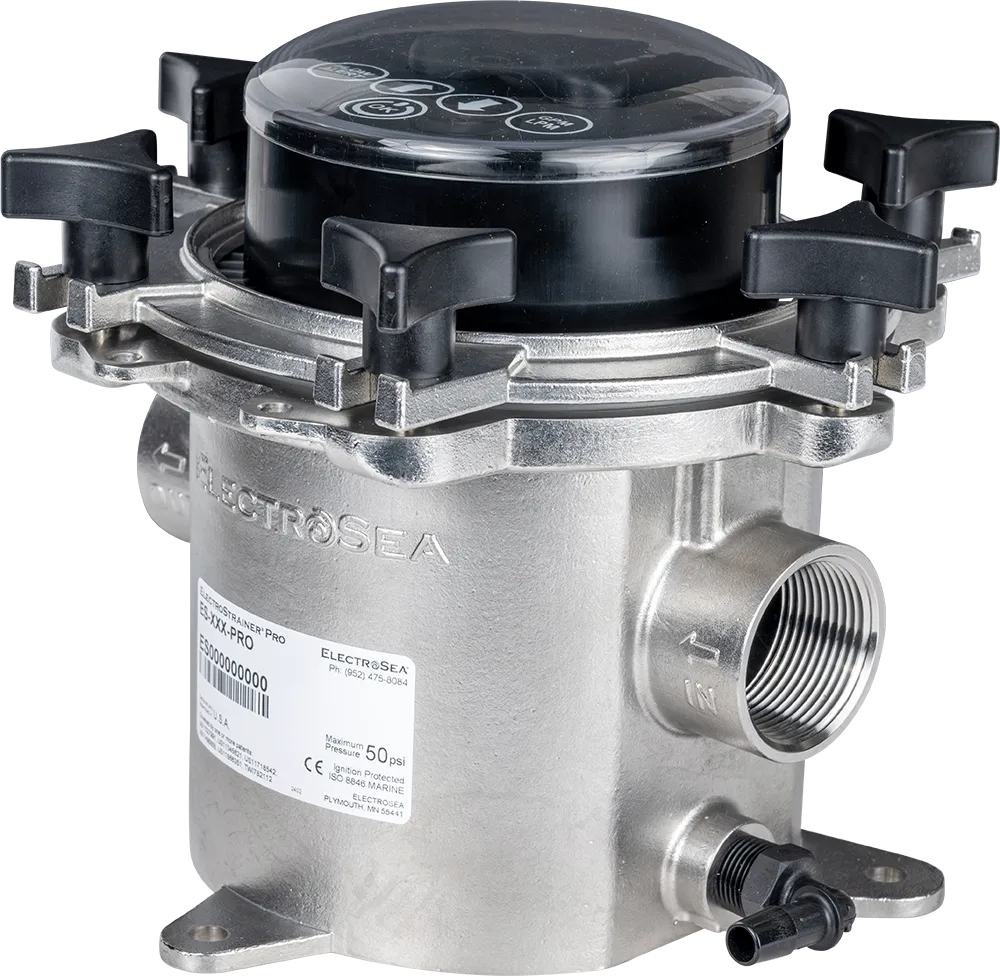

ElectroSea ElectroStrainer Pro ES-125-Pro marine growth prevention system

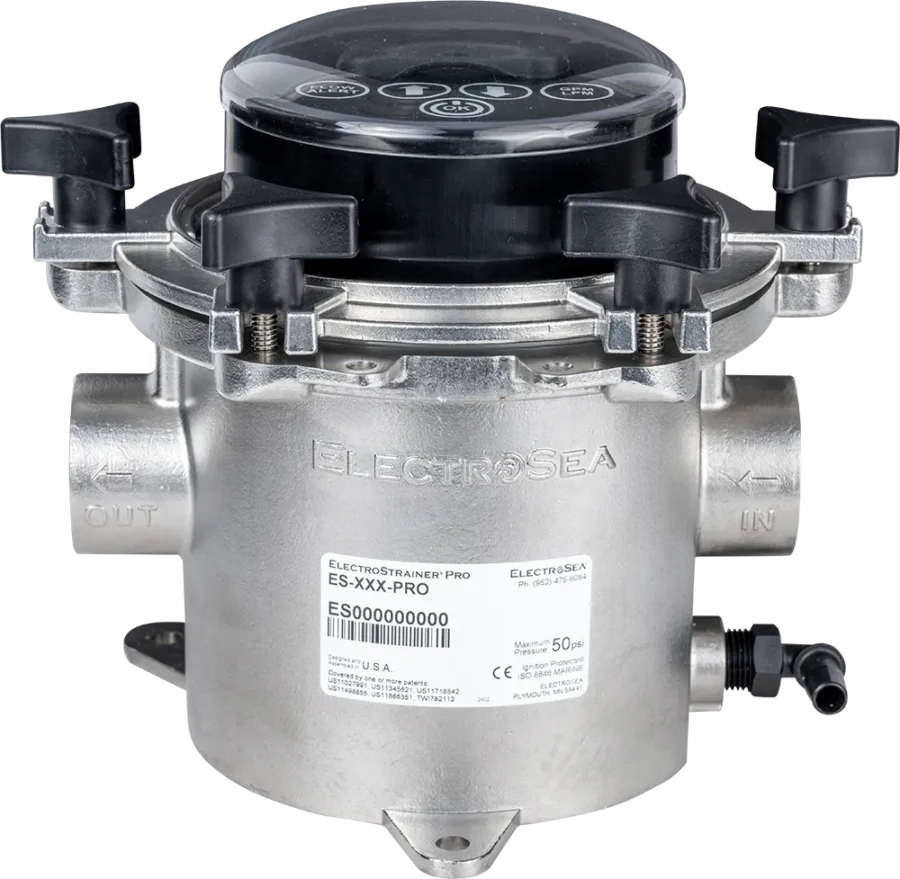

ElectroStrainer Pro ES-125-PRO

1.25″ NPT (DN32)
Optimal Flow: 6-17 gpm
Min/Max Flow: 4-30 gpm

Category ElectroStrainer Pro

Product Description

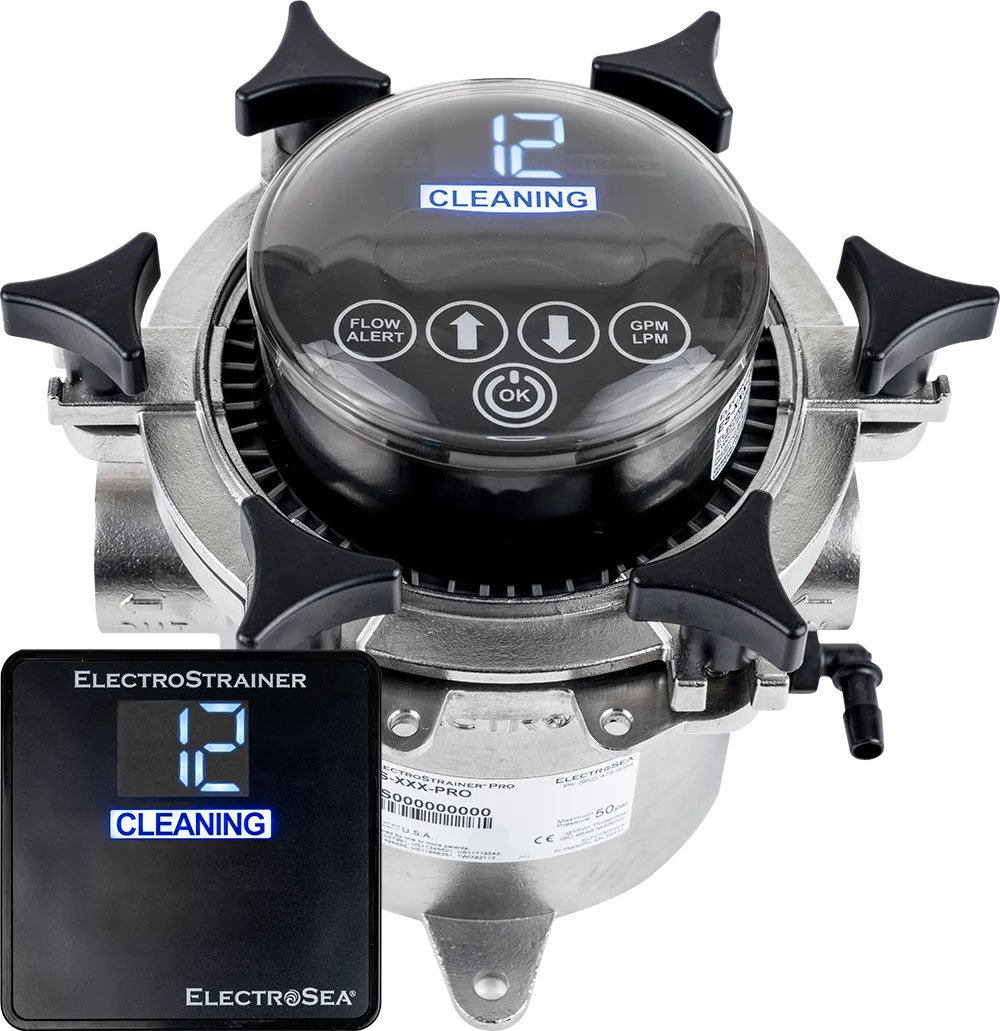

ElectroStrainer ES-125-Pro is a revolutionary, smart all-in-one marine biofouling prevention and sea strainer system. Suited for vessels with 1.25″ NPT (DN32) inlet/outlet accommodation for the sea strainer, the ES-125-Pro replaces your existing sea strainer and combines four components: an innovative biofouling prevention device, an integrated hydrodynamic sea strainer, an advanced, smart flow-monitoring system, and a remote display.

Product Information

Features

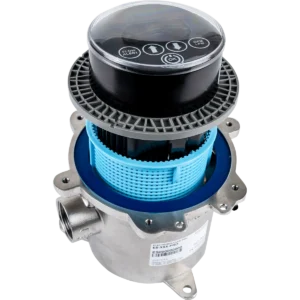

All-in-One Design
ElectroStrainer Pro is an all-in-one, smart biofouling-prevention system with integrated sea strainer.

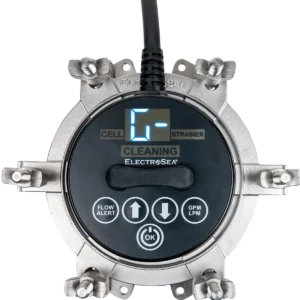

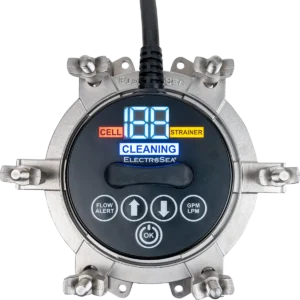

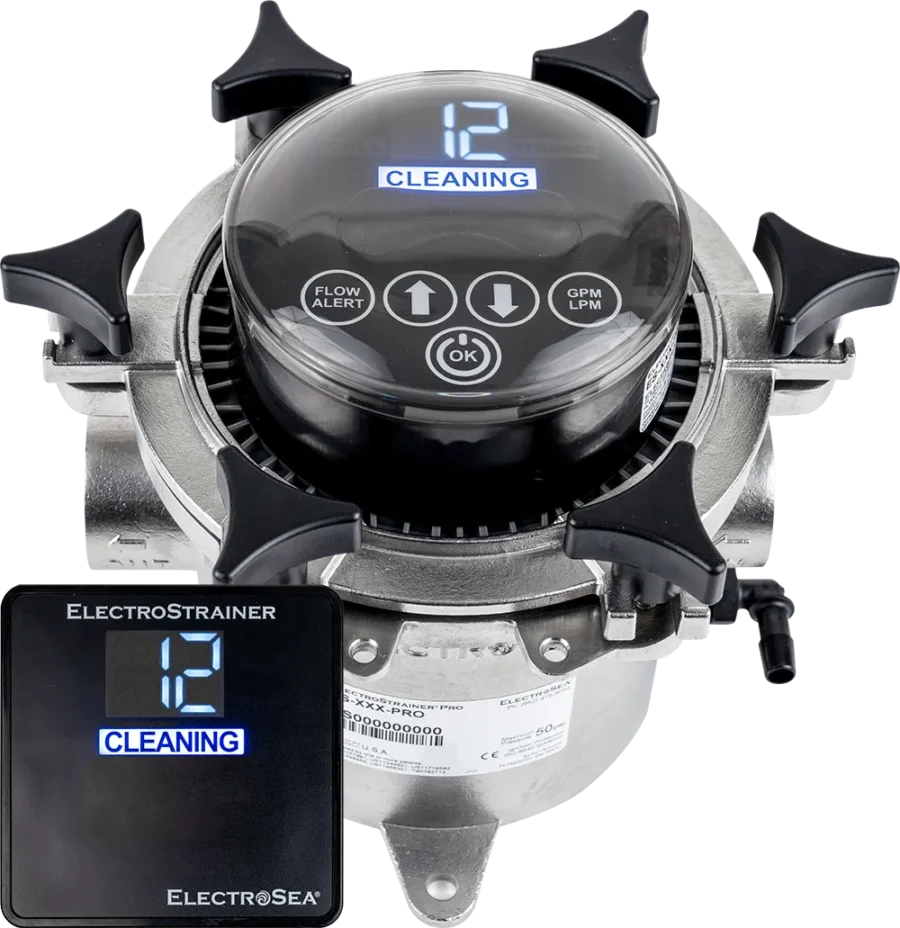

Compact Control Head
The Control Head features a compact design, a water-resistant keypad, and a bright, easy-to-read LED screen and intuitive controls.

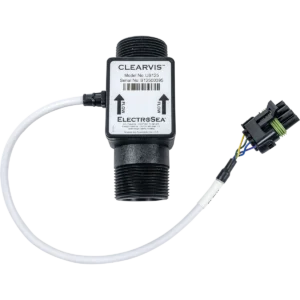

ClearVis® Flow Sensor
The ultrasonic ClearVis® Flow Sensor measures the amount of seawater moving through the sensor in real time.

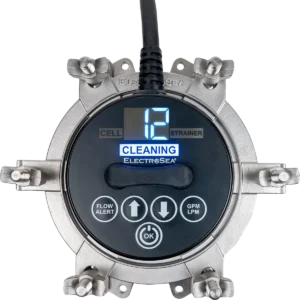

Smart Flow Monitoring
The flow rate is monitored in real time using the ultrasonic ClearVis® Flow Sensor so you know how much protected seawater is flowing through your system at all times. Gone are the days of peering through a dirty site glass or guessing your flow rate.
Smart Strainer Flow Alert™
ElectroStrainer Pro automatically alerts you if its strainer basket needs attention with its Smart Strainer Flow Alert™ feature.

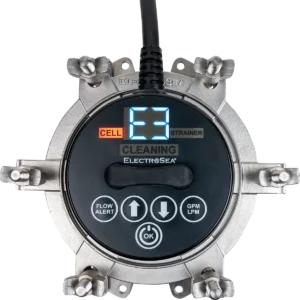

Cell Indicator
The CELL indicator will illuminate or flash in various conditions to indicate low salinity or when the Cell has reached the end of its useful life.

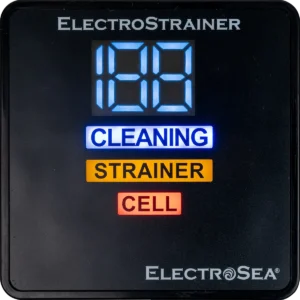

Remote Display
View real-time flow information on the Remote Display, which can be located in the salon, cockpit, or other interior location.

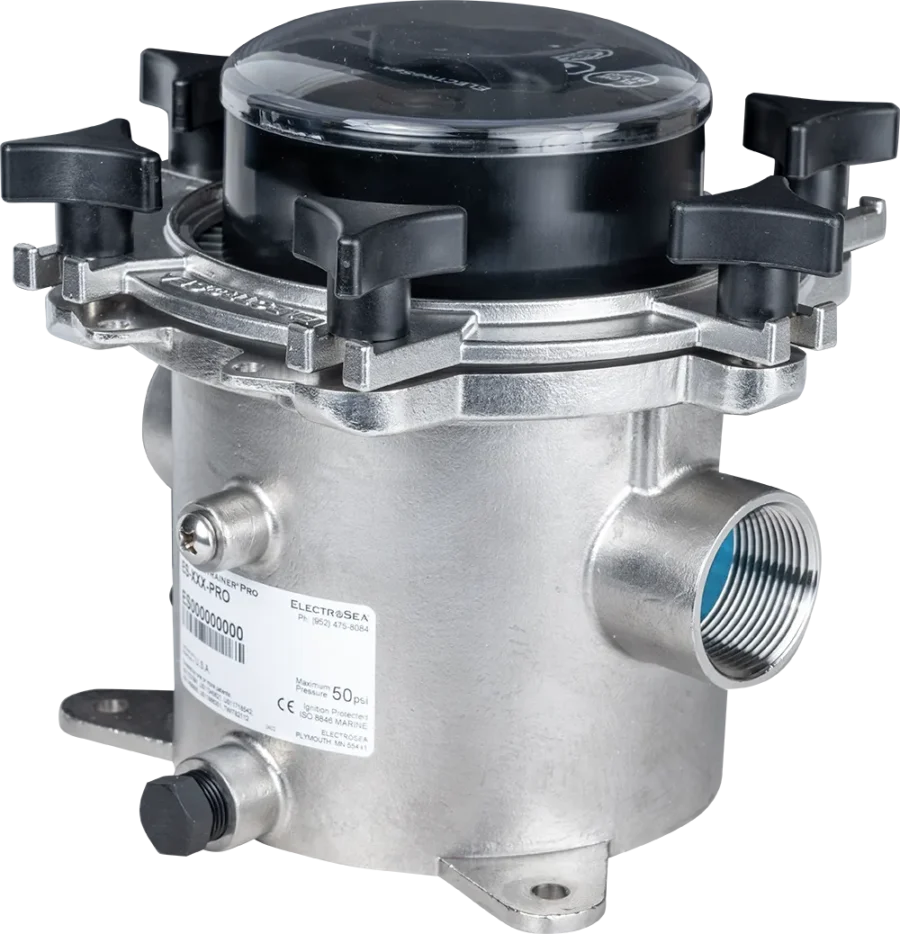

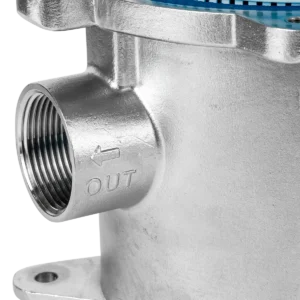

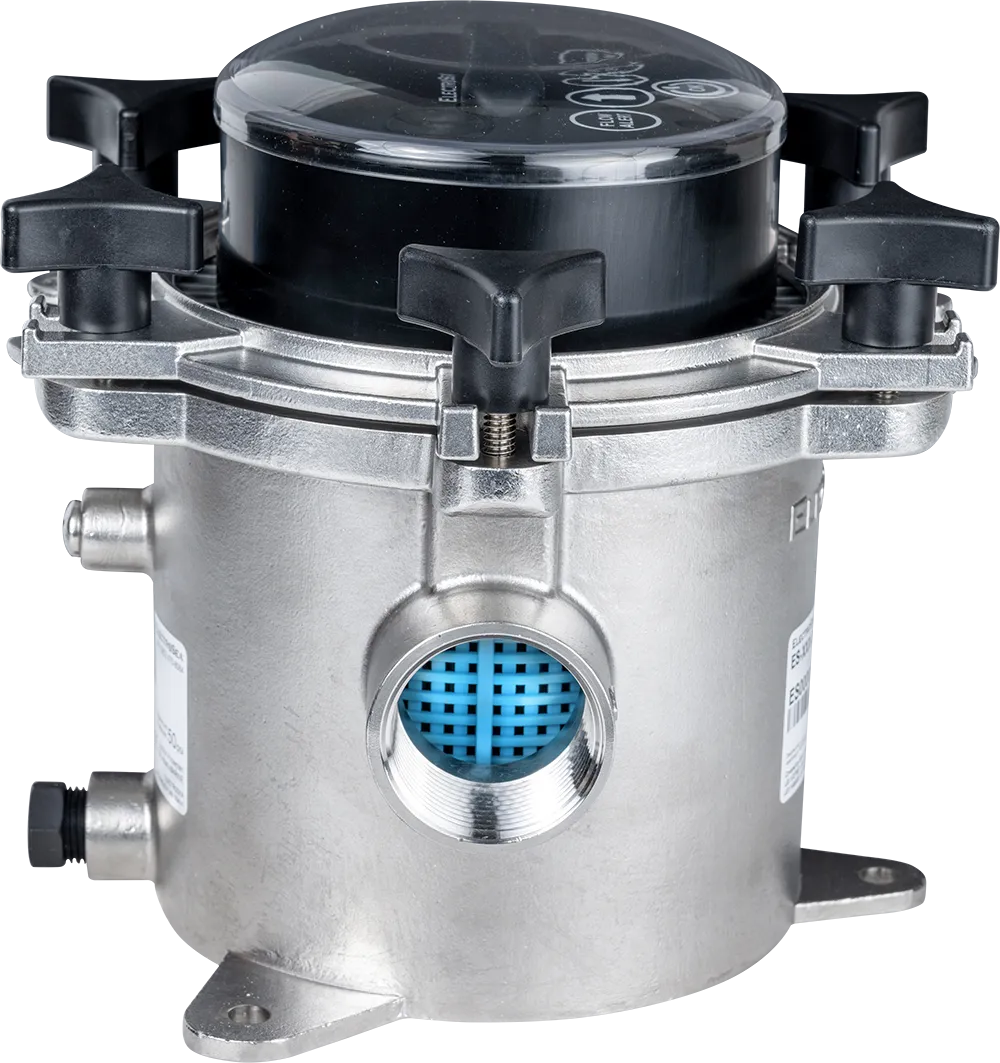

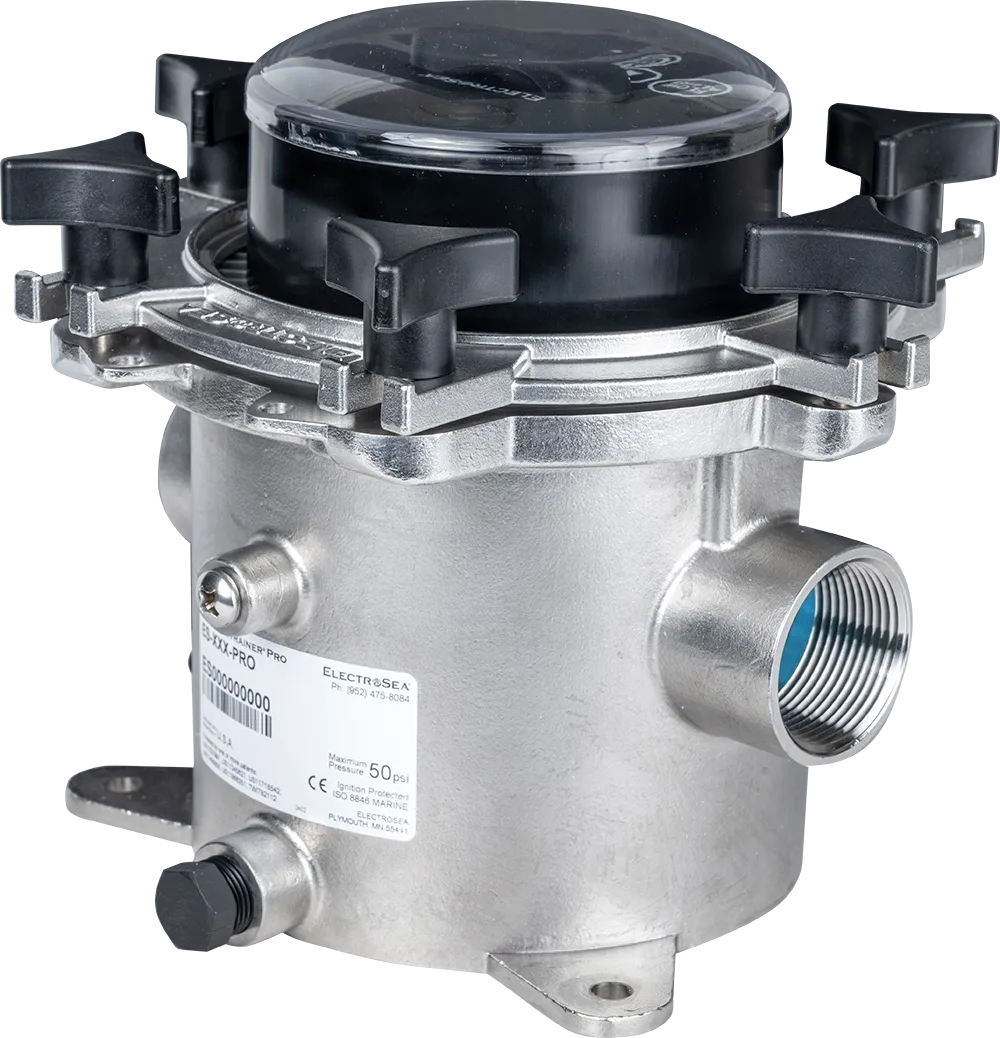

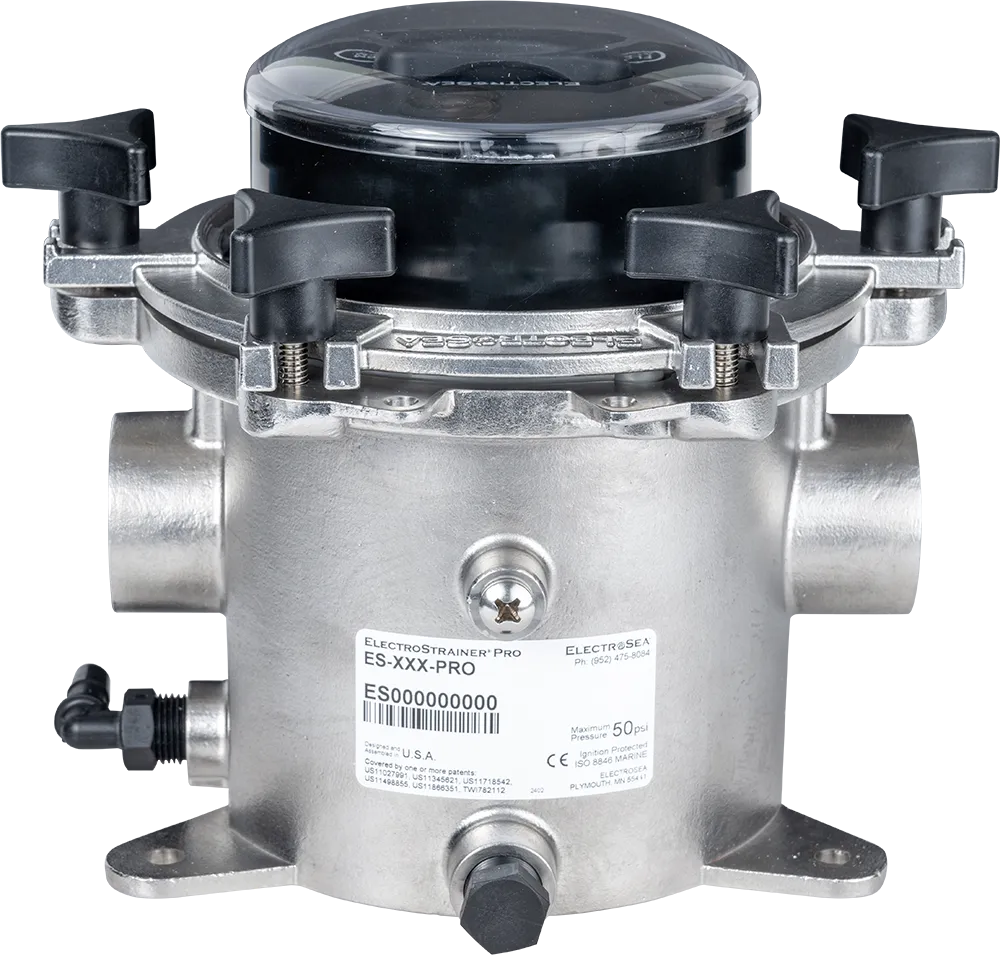

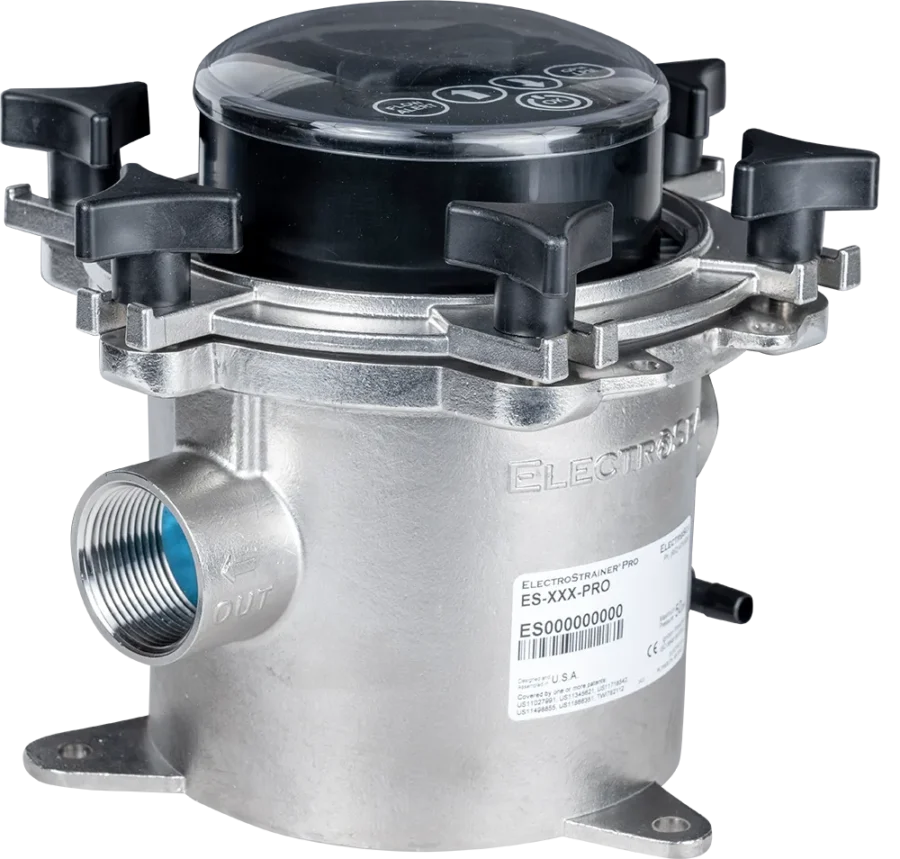

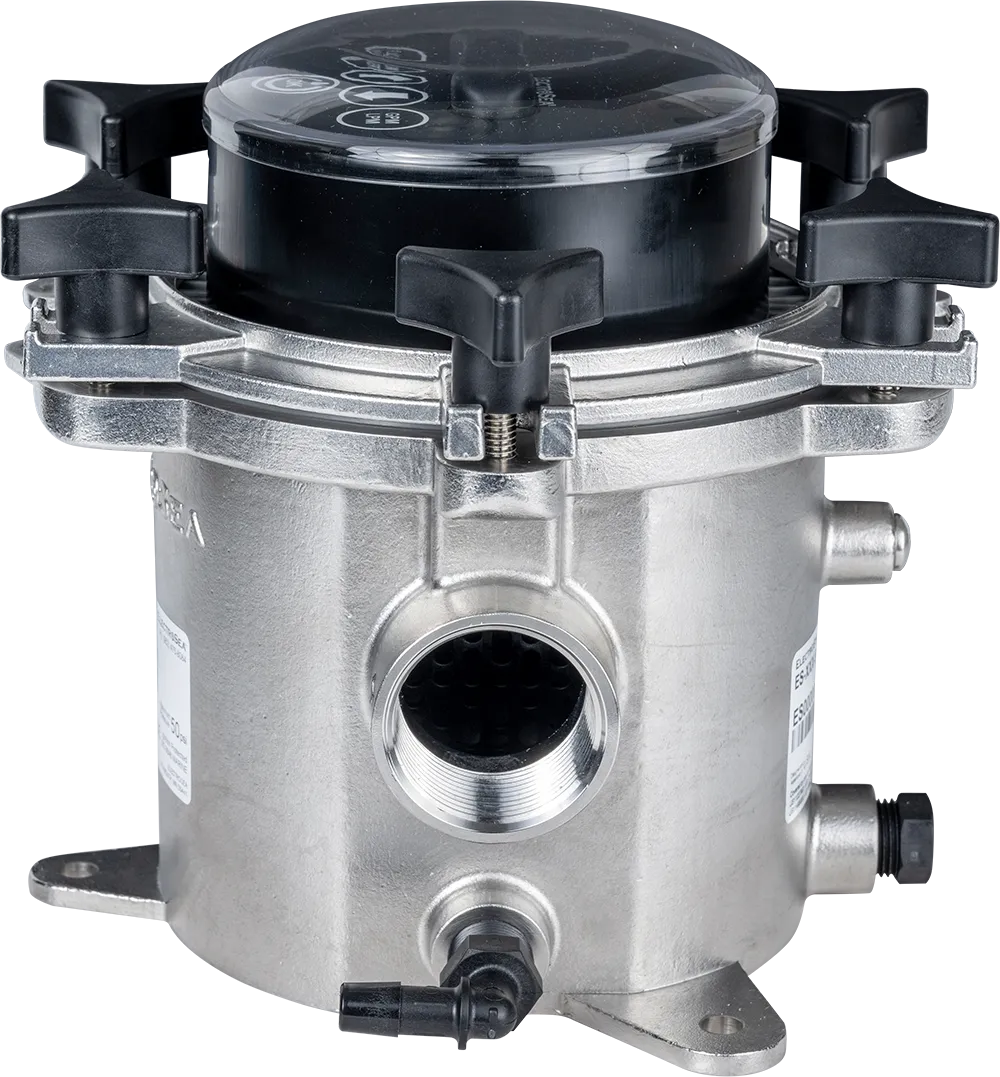

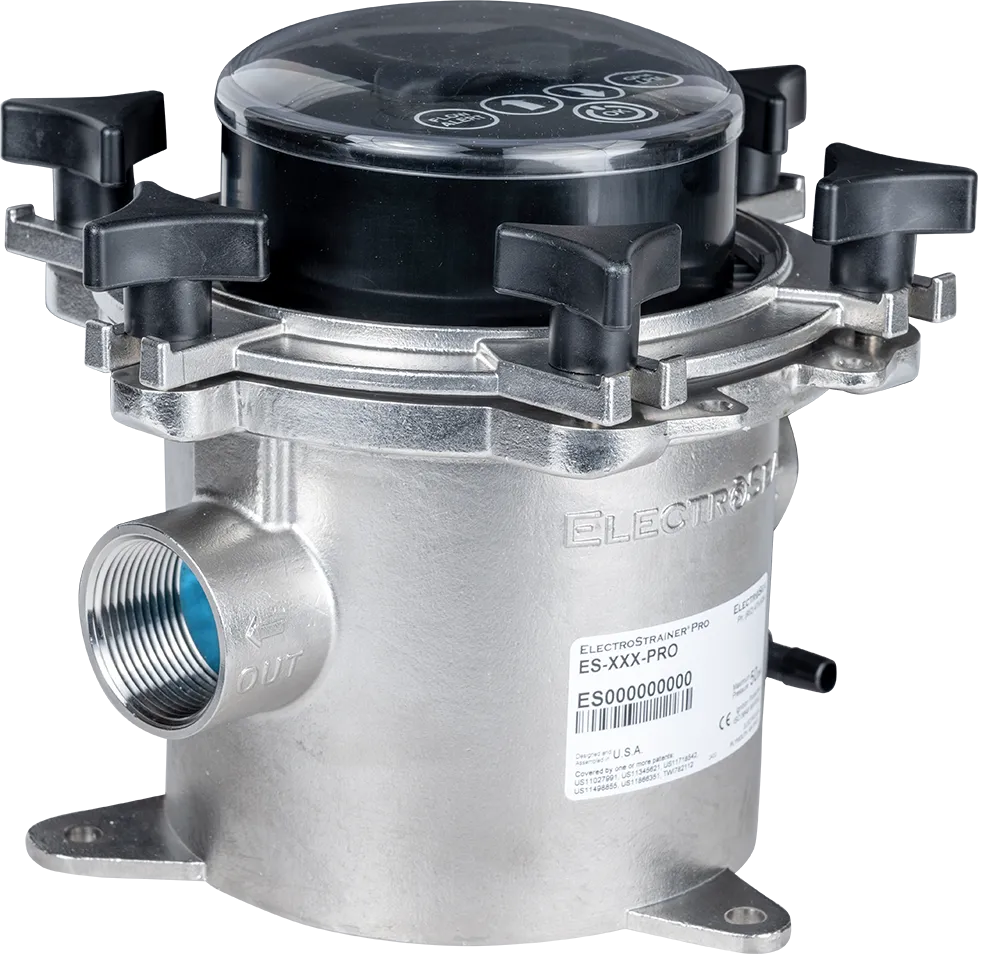

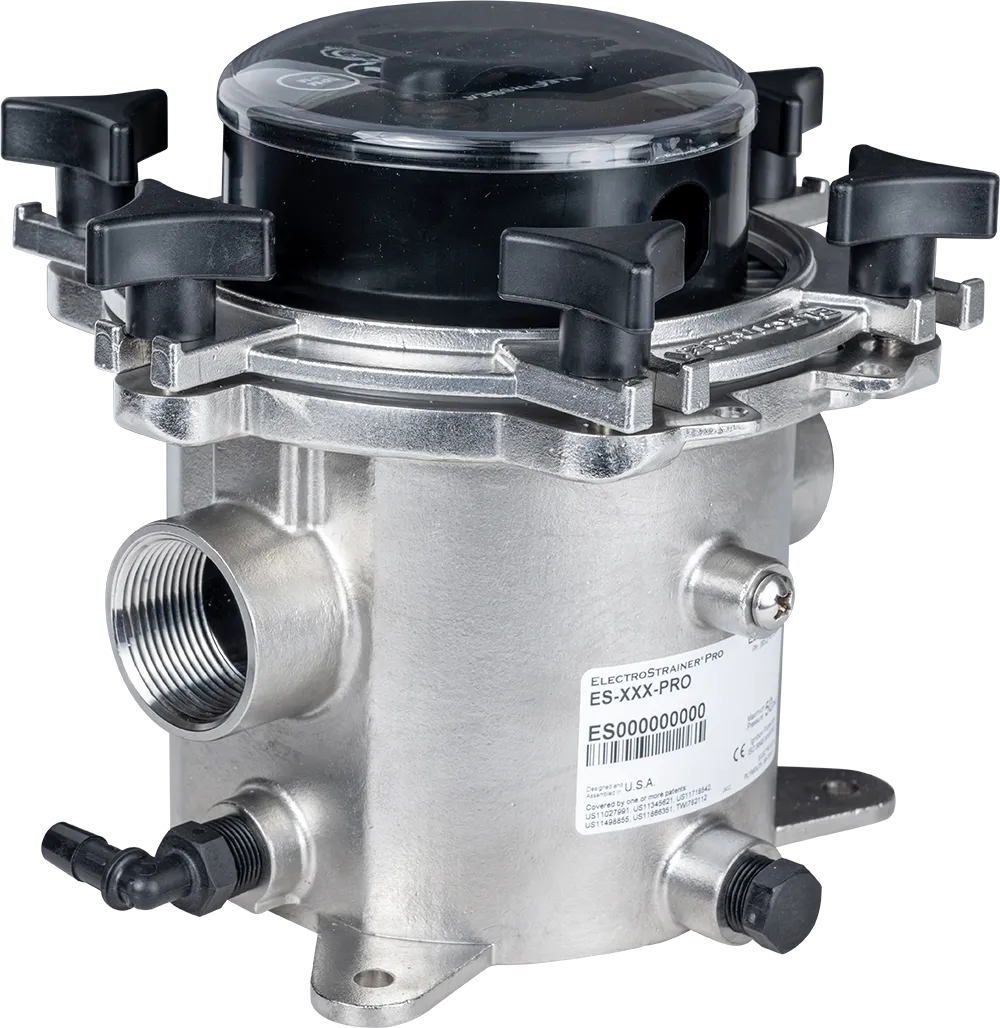

2205 Alloy Canister
The Canister is made of super duplex 2205 stainless-steel, one of the most corrosion-resistant materials in the marine industry, and features a cast one-piece strainer body.

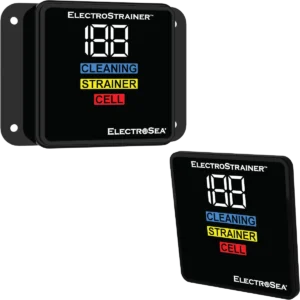

Remote Display Mounting Options
The Remote Display can be mounted using the included Black or White Mounting Bracket or it can be flush mounted.

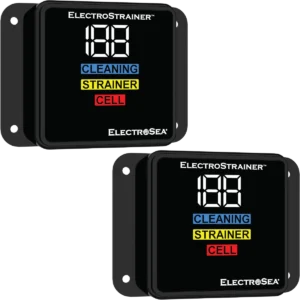

Optional Additional Remote Displays
ElectroStrainer Pro can operate with multiple Remote Displays (ordered separately).
Flow Rate in gpm or lpm
Monitor flow rate in gallons per minute (gpm) or liters per minute (lpm).

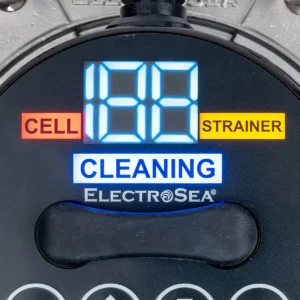

LED Status Lights
Bright, color-coded LED lights provide operating status at a glance and are easy to see even from across your engine room.

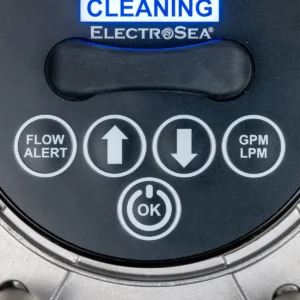

Water-Resistant Keypad
The water-resistant keypad provides easy-to-see, intuitive operation.
Chlorinated Return Line
A chlorinated return line prevents growth at the inlet side of the strainer basket.

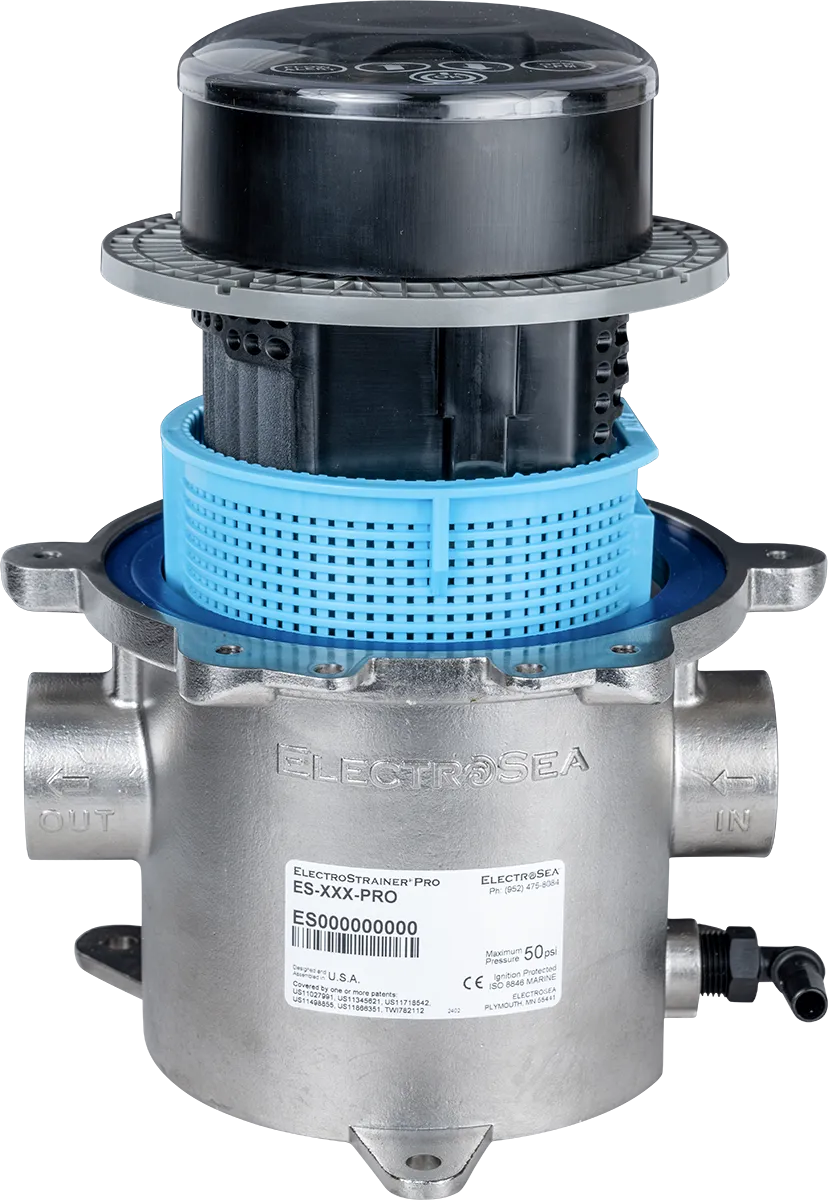

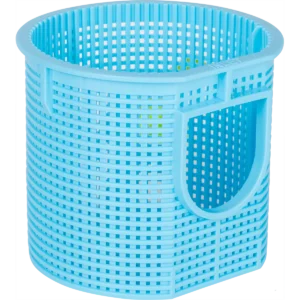

Hydrodynamic Strainer Basket
The integrated sea strainer basket is hydrodynamically optimized to diffuse chlorinated seawater throughout the entire basket. The strainer basket has a large surface area with minimal pressure drop.

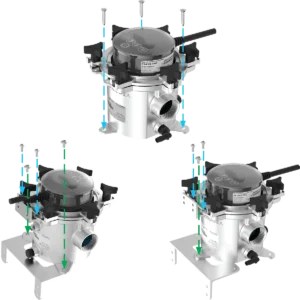

Mounting Options
Multiple mounting configurations available to fit any vessel.

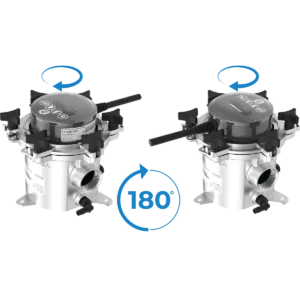

180° Control Head Rotation
The Control Head can be oriented on the Canister so it is facing the front or the back for easy viewing.

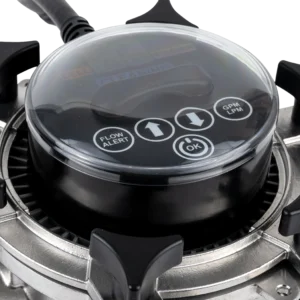

Clear Protective Cover
A clear protective cover keeps water and dirt off the Control Head, while allowing easy viewing of the LED screen and indicator lights.

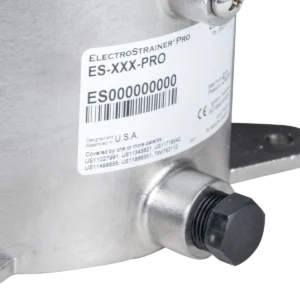

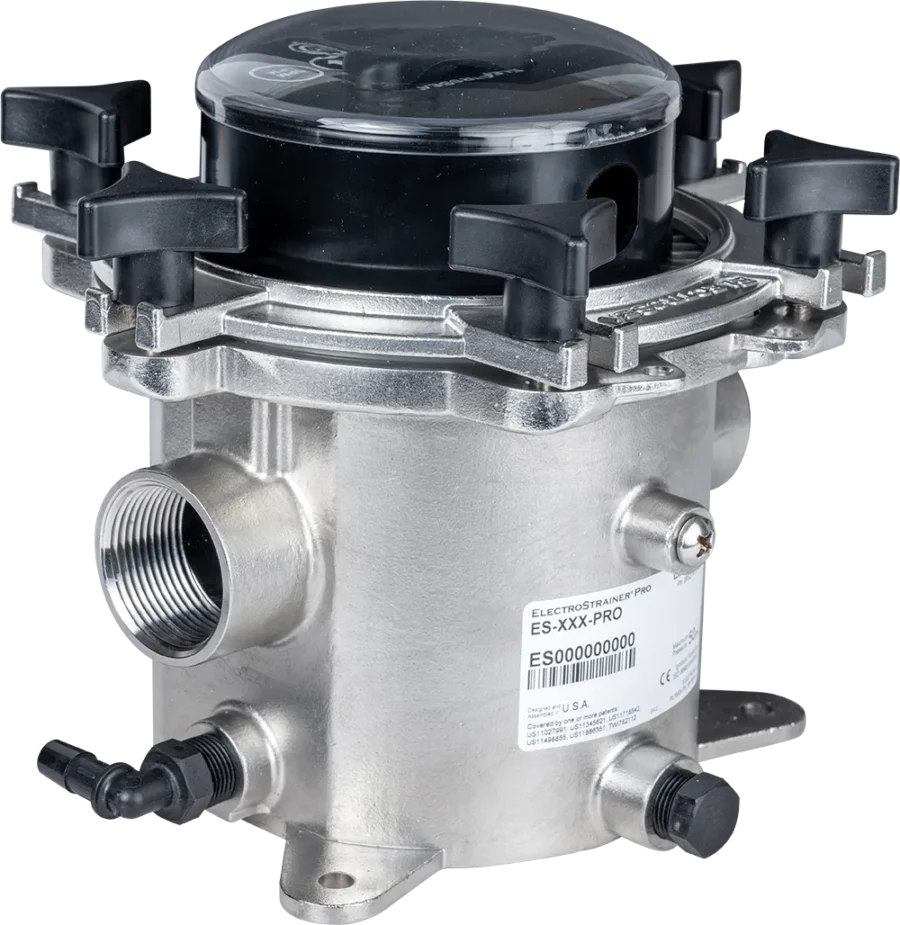

Drain Plug
A removable drain plug allows for draining (i.e., for winter storage) of the ElectroStrainer Pro Canister.

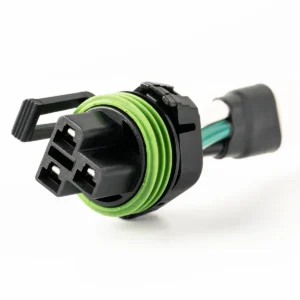

Water Resistant Connectors
Every aspect of ElectroStrainer Pro, including the connectors, are designed to withstand the rigors of the marine environment. Triple-sealed connectors prevent water intrusion.

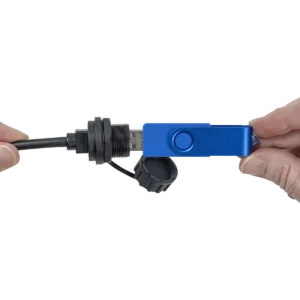

Easy Updates
Make quick and easy firmware updates using the built-in USB port.
2-Year Warranty
ElectroStrainer Pro is backed by ElectroSea’s 2-year parts and labor warranty.

Specifications

Canister and Control Head Assembly

Dimensions (L x W x H)	9.02 x 7.72 x 7.37 inches 229.11 x 196.09 x 187.2 mm
Weight	13 lb 9 oz 6.15 kg
Power Source	12 or 24 VDC
Power Consumption	Max Power: 65 watts Typical Power: 35 watts
Cables Included	Power: 30 ft (9 m) Remote Display Communication: 30 ft (9 m)
Optional Cables (ordered separately)	Extended Remote Display Communication: 100 ft (30 m) ClearVis Flow Sensor Extension: 6 ft (1.8 m)
Inlet/outlet	1.25 inches NPT (DN32)
Flow Rate	Optimal Flow: 6-17 gpm (23-64 lpm) Min/Max Flow: 4-30 gpm (15-114 lpm)
Maximum Operating Pressure	50 psi
Replacement Cell Part Number	300074-040

Remote Display

Dimensions Including Mounting Bracket (L x W x H)

5.5 X 3.96 X 1.51 inches
139.70 x 100.58 x 38.35 mm

Manuals & Documentation

Installation and Operation Manual

ElectroStrainer Pro Brochure

Note: Product images are for illustration purposes only and may not be an exact representation of the product.
ElectroSea reserves the right to change product images and specifications at any time without notice.
